Leica BLK360 G1 Imaging Laser Scanner
5,550.00$
The BLK360 G1 is designed to help new-to-LiDAR users capture point clouds and unlock the potential of using them in many different applications. Ranging from practical uses, such as architecture and surveying, to creative possibilities, such as VR workflows and media location scouting, the BLK360 G1 is meant to make reality capture accessible to everyone.
Description
Leica BLK360 G1 Imaging Laser Scanner
Leica BLK360 G1 Imaging Laser Scanner for sale

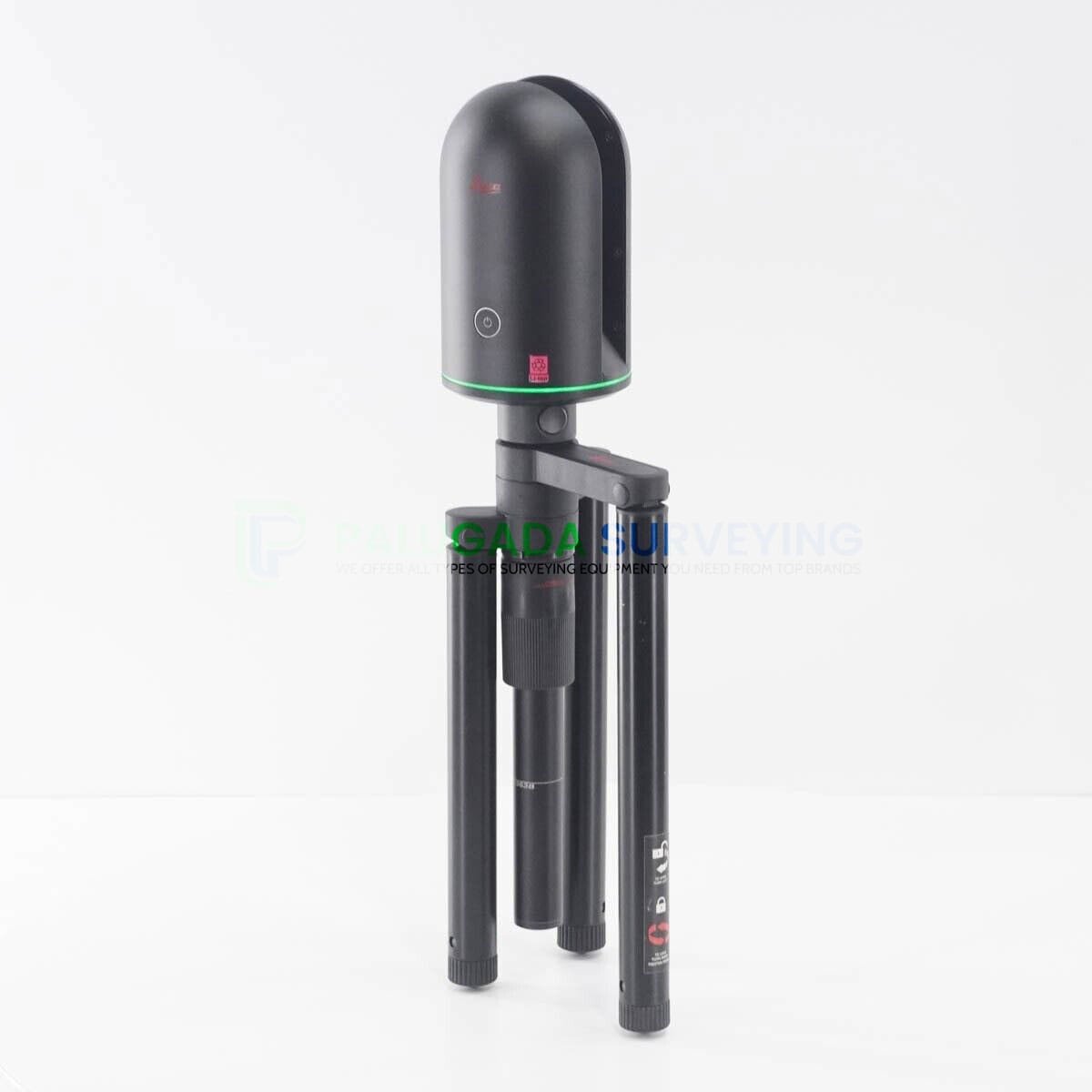

The smallest and lightest imaging laser scanner available
The Leica BLK360 captures the world around you with full-colour panoramic images overlaid on a high-accuracy point cloud. Simple to use with just the single push of one button, the BLK360 is the smallest and lightest of its kind. Anyone who can operate an iPad can now capture the world around them with high resolution 3D panoramic images.
Using the ReCap Pro mobile app, the BLK360 streams image and point cloud data to iPad. The app filters and registers scan data in real time. After capture, ReCap Pro enables point cloud data transfer to a number of CAD, BIM, VR and AR applications. The integration of BLK360 and Autodesk software dramatically streamlines the reality capture process thereby opening this technology to non-surveying individuals.

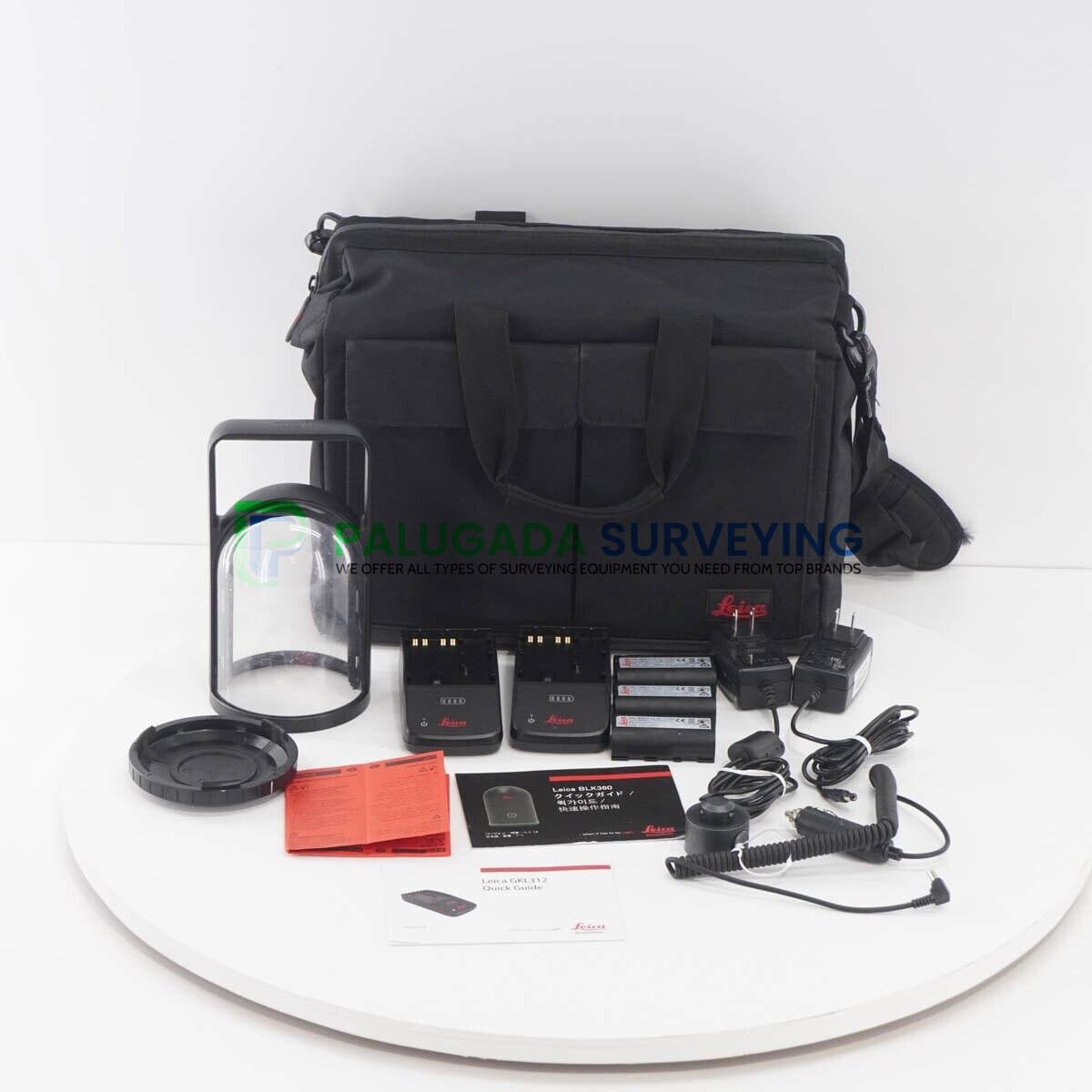

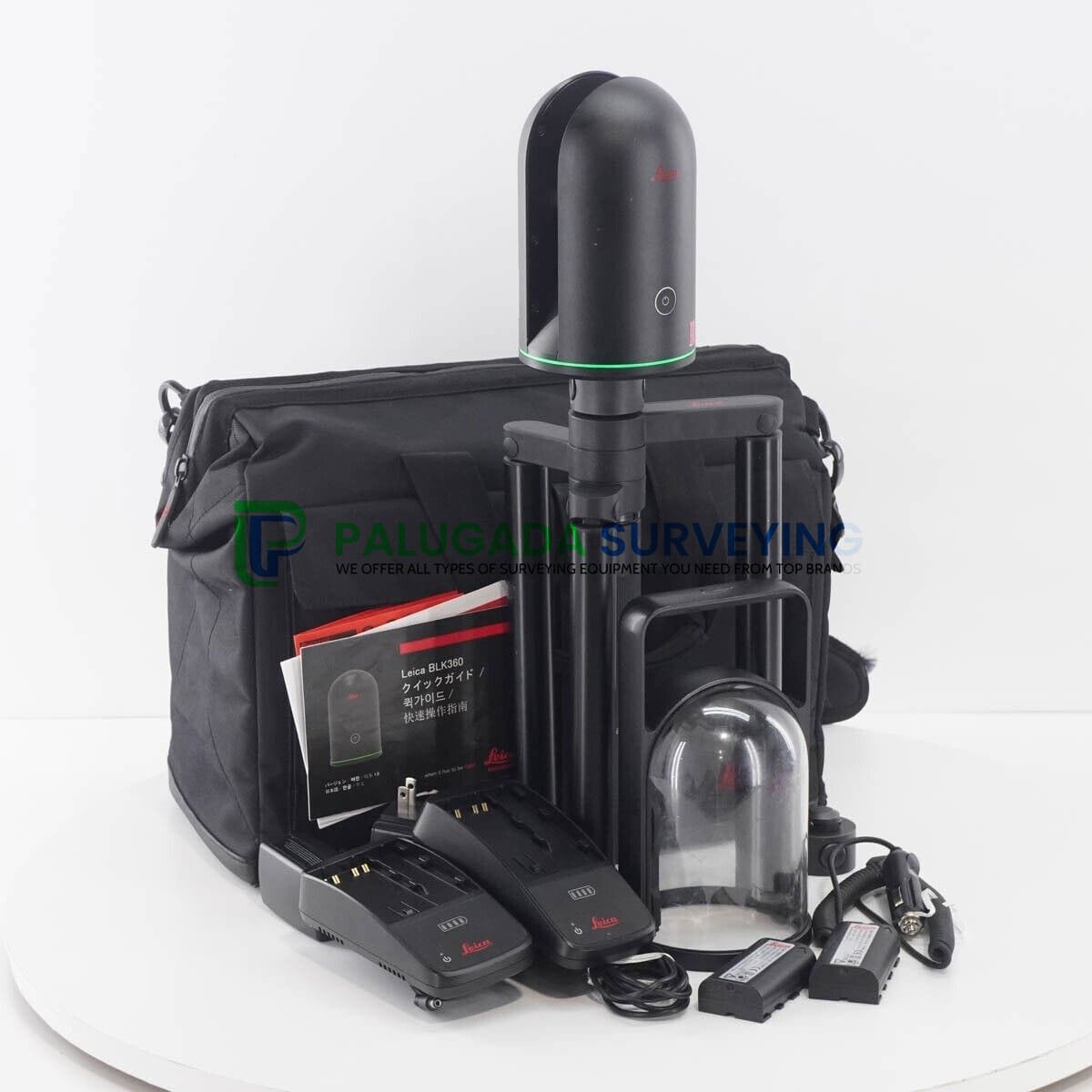

Package includes:
- Leica BLK360 Imaging Laser Scanner
- GEB212 Lithium-Ion Battery for the BLK360
- GKL311 Battery Charger
- AC/DC adaptor
- BLK360 Tripod
- BLK360 Mission bag
BLK360 Imaging Laser Scanner
- Allows you to scan in high, standard and fast resolutions
- Weighs 1kg / Size 165 mm tall x 100 mm diameter
- Less than 3 minutes for full-dome scan (in standard resolution) and 150 MP spherical image generation
- 360,000 laser scan pts/sec
ReCap Pro Software
- Gain complete access to ReCap Pro for desktop, web and mobile*
- Control all aspects of the reality capture process remotely on ReCap for iPad
- Automatically register and visualise scan data in the field
- Mark up, tag and collaborate on scans while on the job site
- Reduce rework requests and share reality data remotely
- Seamless data transfer into Autodesk design software
With the combination of the BLK360 and Autodesk ReCap Pro, benefit from:
Speed
On-the-fly image and point cloud processing in the field.
Portability
Flexibility to scan wherever, whenever with the small lightweight scanner that fits into a messenger bag.
Ease of Use
Push-button scanning that automatically stitches and registers in the mobile version of ReCap Pro.
Cloud Connectivity
Better collaboration and virtualisation with cloud sync.
Simplified Data Collection
Two-in-one 360º image documentation and laser scan data.
Interoperability
Reality capture data connectivity with Autodesk’s design solutions.
Leica BLK360 Product Specifications | |
GENERAL | |
Imaging scanner | 3D scanner with integrated spherical imaging system and thermography panorama sensor system |
DESIGN & PHYSICAL | |
Housing | Black anodized aluminium |
Dimensions | Height: 165 mm / Diameter: 100 mm |
Weight | 1kg |
Transport cover | Hood with integrated fl oorstand |
Mounting mechanism | Button-press quick release |
OPERATION | |
Stand-alone operation | One-button operation |
Remote operation | iPad app, Apple iPad Pro® 12.9” or 10.5”/iOS 10 or later |
Wireless communication | Integrated wireless LAN (802.11 b/g/n) |
Internal memory | Storage for > 100 setups |
Instrument orientation | Upright and upside down |
POWER | |
Battery type | Internal, rechargeable Li-Ion battery (Leica GEB212) |
Capacity | Typically >40 setups |
SCANNING | |
Distance measurement system | High speed time of fl ight enhanced by Waveform Digitizing (WFD) technology |
Laser class | 1 (in accordance with IEC 60825-1:2014) |
Wavelength | 830 nm |
Field of view | 360° (horizontal) / 300° (vertical) |
Range | min. 0.6 – up to 60 m |
Point measurement rate | up to 360’000 pts / sec |
Ranging accuracy | 4mm @ 10m / 7mm @ 20m |
Measurement modes | 3 user selectable resolution settings |
IMAGING | |
Camera System | 15 Mpixel 3-camera system, 150Mpx full dome capture, HDR, LED fl ash Calibrated spherical image, 360° x 300° |
Thermal Camera | Longwave infrared camera Thermal panoramic image, 360° x 70° |
PERFORMANCE | |
Measurement speed | < 3 min for complete fulldome scan, spherical image & thermal image |
3D point accuracy | 6mm @ 10m / 8mm @ 20m |
ENVIRONMENTAL | |
Robustness | Designed for indoor and outdoor use |
Operating temperature | +5 to +40° C |
Dust/Humidity | Solid particle/liquid ingress protection IP54 (IEC 60529) |
DATA ACQUISITION | |
Live image and scanned data streaming | |
Live data viewing and editing | |
Automatic tilt measurements |
