Description

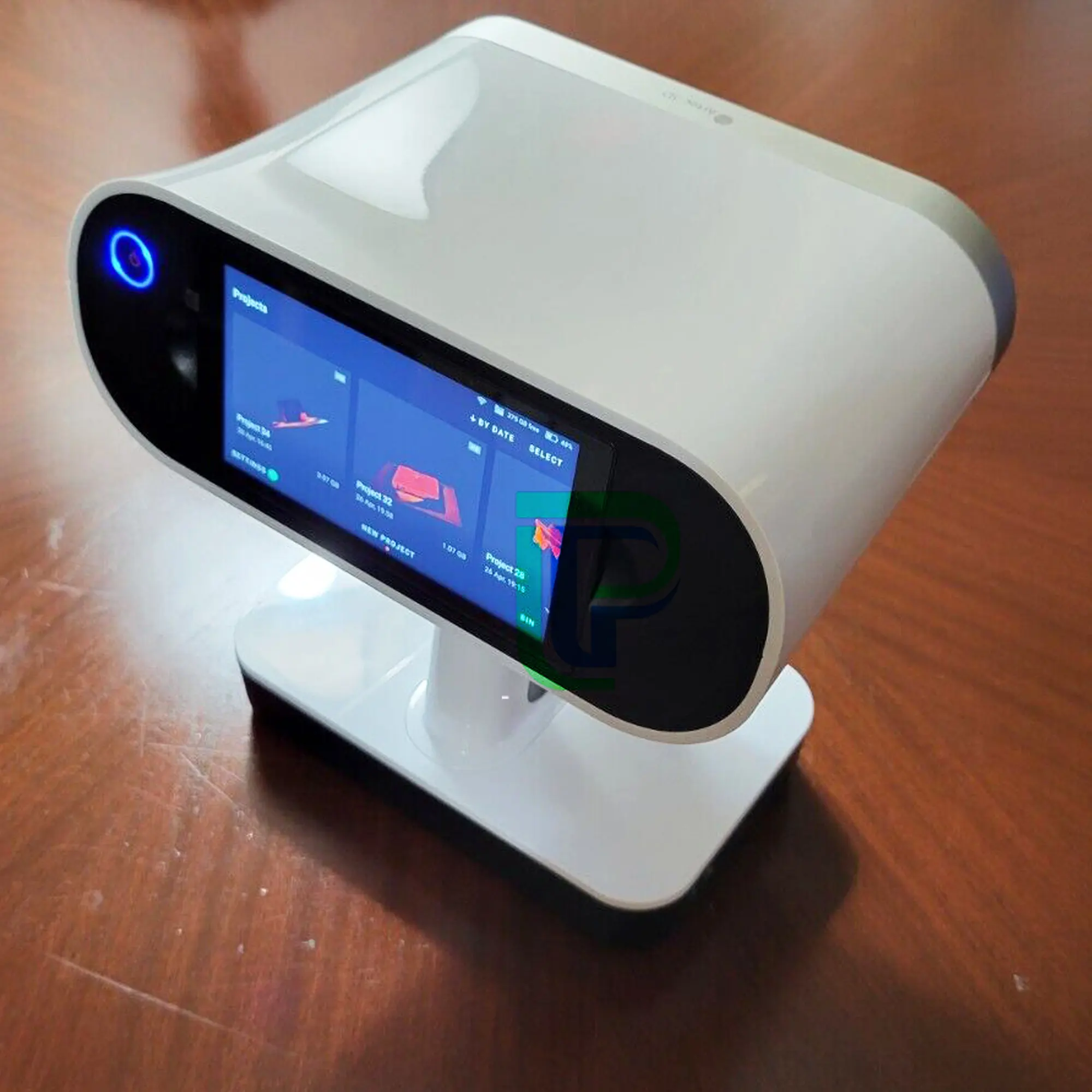

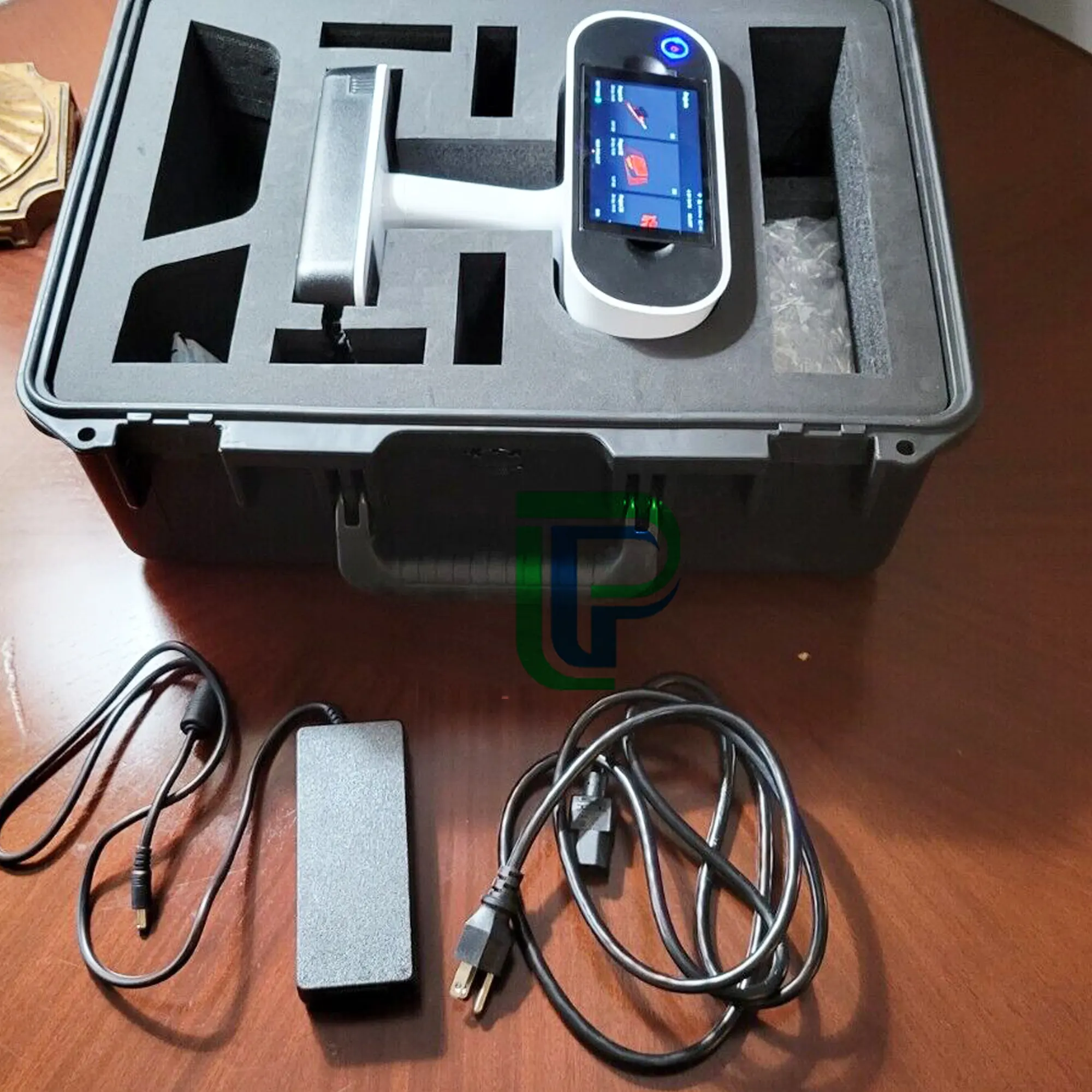

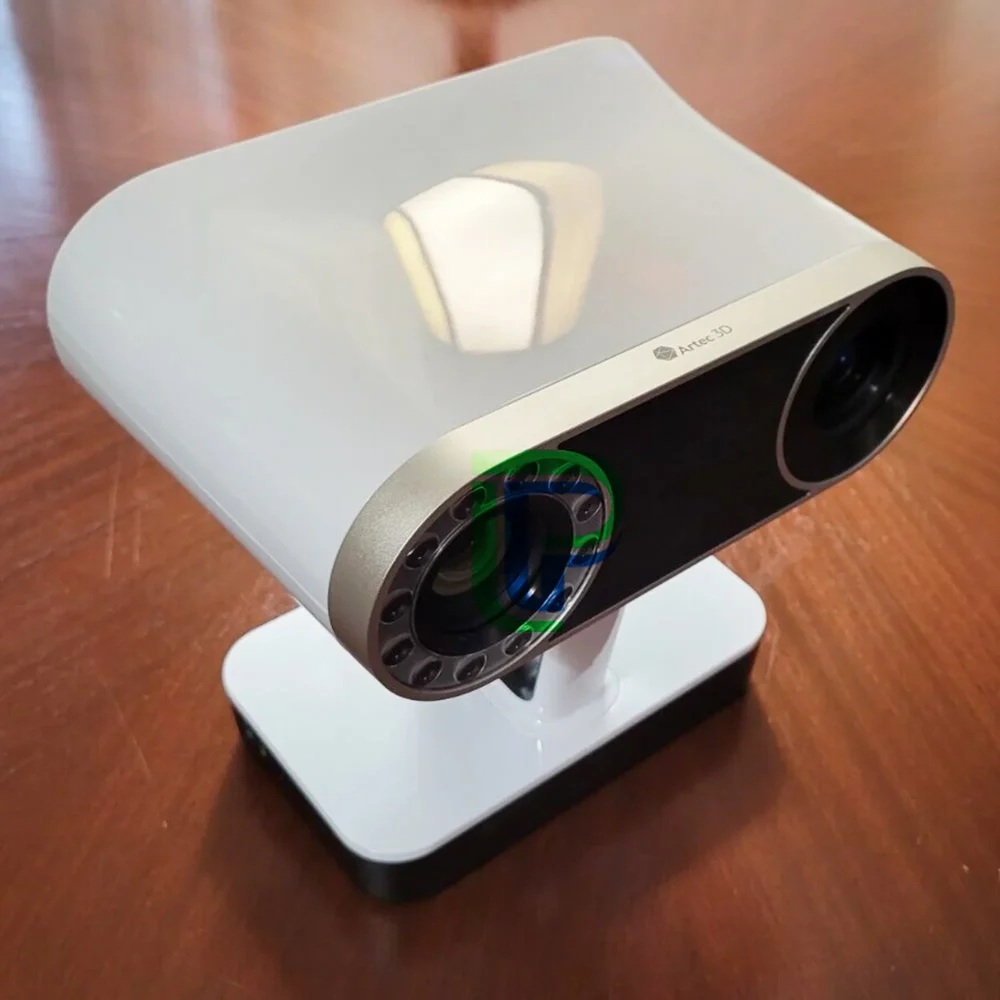

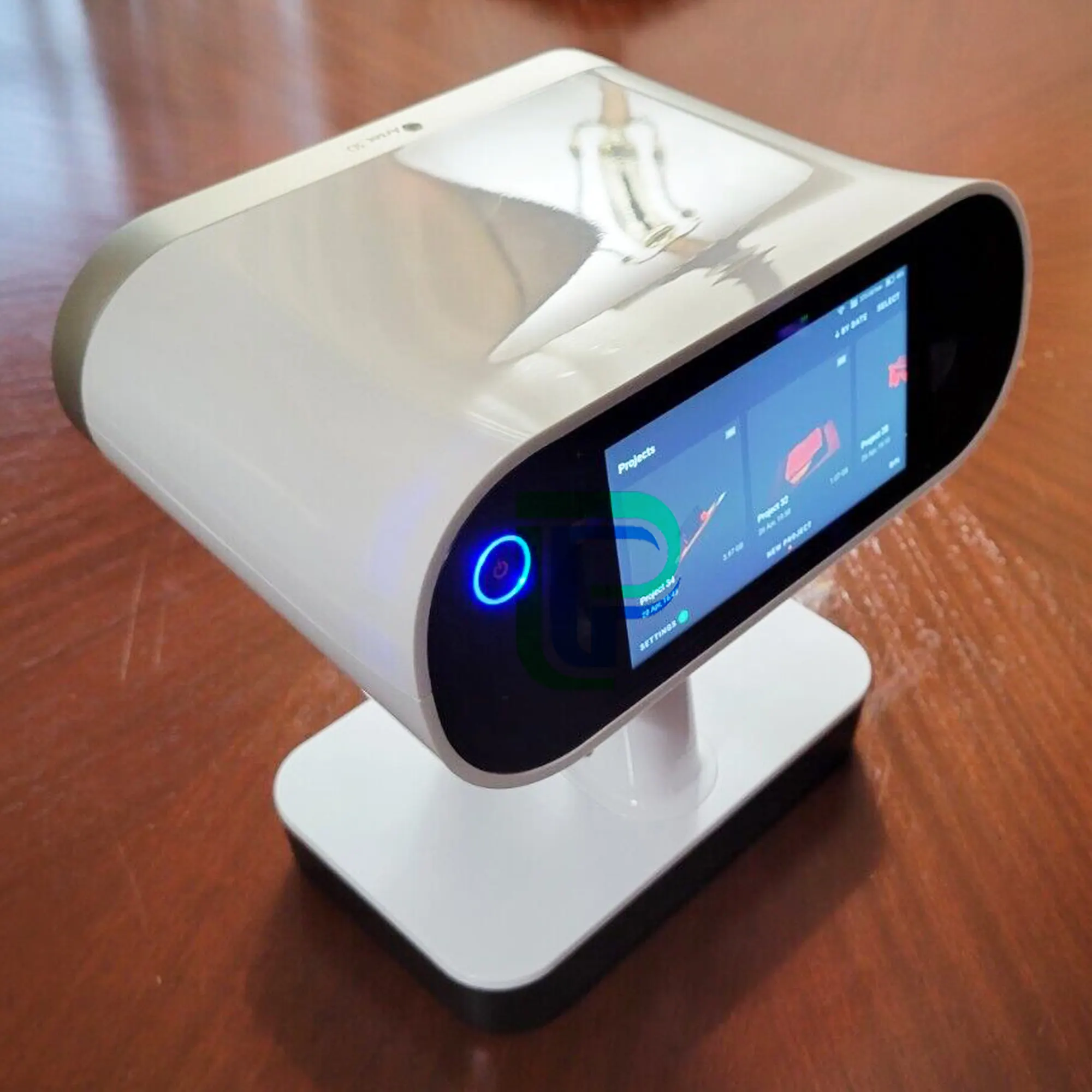

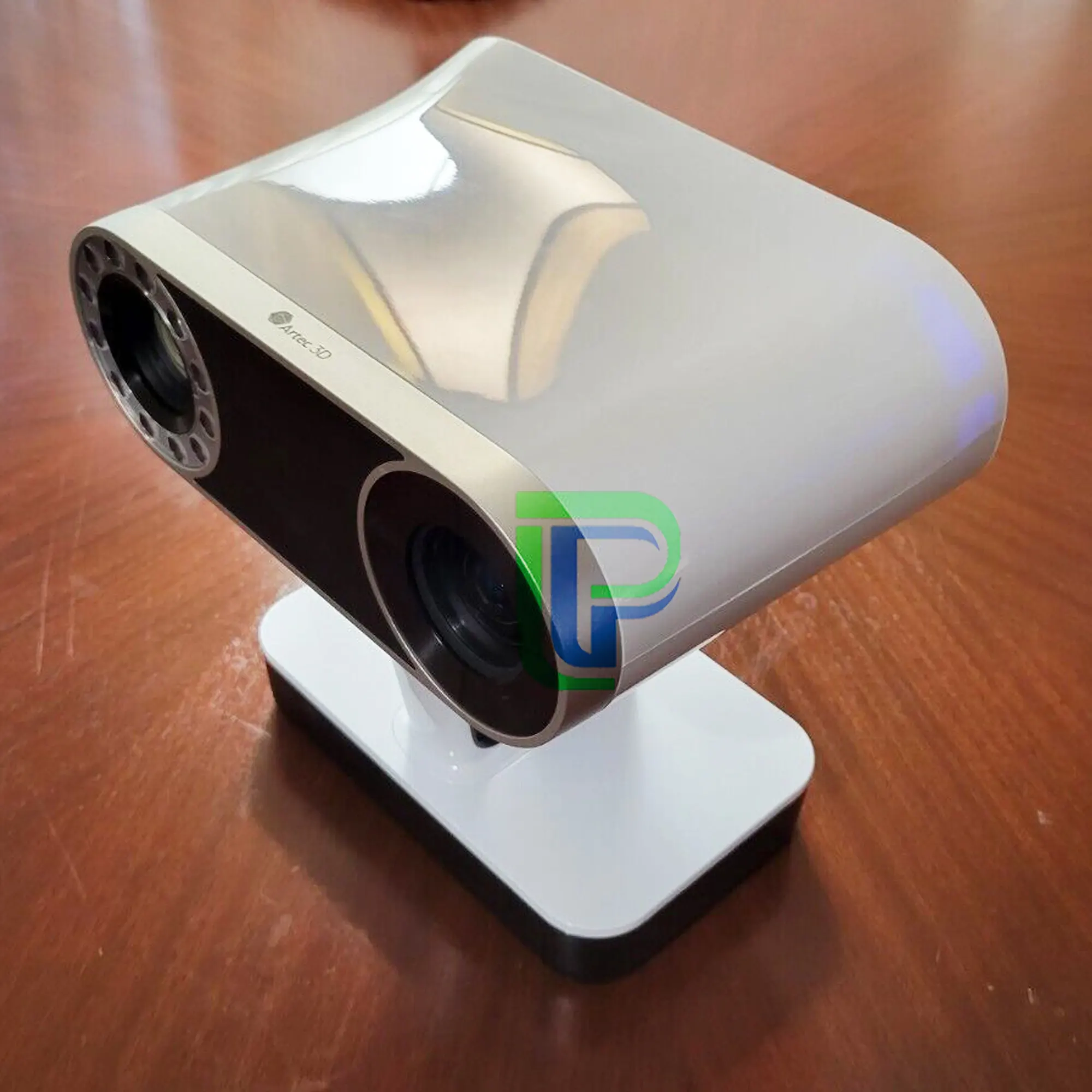

For sale Artec Leo 3D Scanner, year 2022 looks like new and everything is still excellent condition.
Moreover, it has been serviced and calibrated by Artec authorized. In addition, all software updates have been performed, and it functions flawlessly in accordance with Artec operational standards.
Artec Leo is the world’s first AI-driven, wireless 3D scanner, featuring a built-in powerful NVIDIA processor, 5” HD display, and long-lasting battery for cable-free, computer-free operation. It allows for high-quality 3D scanning of various sized objects with advanced texture and geometry capture, smart data capture, and WiFi connectivity for immediate scan-to-cloud transfer.
Key Features
– Fully wireless 3D scanning, AI-driven
– Powerful on-board real-time processing
– Wide object size and range compatibility
– Advanced texture and geometry capture technology
– Smart, target-free data capture
– Scan-to-cloud and WiFi connectivity
Cable Free 3D Scanning
Experience unparalleled freedom with Artec Leo’s wireless, standalone operation. This cutting-edge 3D scanner liberates you from cables and PCs, allowing you to scan anywhere with ease. Its self-contained design ensures mobility and convenience, making it the perfect tool for capturing high-quality data in any setting. Features that make the Leo wire-free include:
– Exchangeable long-lasting battery
– Scan-to-cloud data transfer
– Remote scanner monitoring and controlling
Capture Smarter not harder
Artec Leo’s smart capture capabilities unlocks precision and efficiency, harnessing AI for flawless, target-free scanning. This intelligent technology simplifies data acquisition, delivering superior results effortlessly.
– AI-Driven Accuracy ensures precise scans every time
– Target-Free Scanning simplifies the process
– Quick Process Data captures only the data you need
Preview in real time
Artec Leo’s real-time preview brings unmatched efficiency to 3D scanning. Accessible via an HD 5” touchscreen display, this powerful feature allows for live feedback directly on the device, quick adjustments, and flawless captures every time.
– See scans directly on the device
– Minimize post-scan adjustments on-the-fly
– Intuitive UI for all skill levels
– Tiltable screen for the right view at any angle
Wide scanning versatility
Scan a vast array of object and sizes with Artec Leo. Designed to capture everything from intricate details to expansive spaces, its versatility ensures precision across a diverse range of objects and environments making it the ultimate tool for professionals in any field.
– Capture Zone: 160,000 cm3
– Excels at capturing medium to large objects/surfaces
– Pair with a computer to capture entire spaces
– Ideal Applications: Gearboxes, car parts, statues, human anatomy, furniture, crime scenes, etc.
Powerful processing for HD results
Artec Leo’s processing prowess, powered by the NVIDIA Jetson TX2, redefines speed and accuracy in 3D scanning. Packed with a variety of advanced tech and algorithms, Artec Leo delivers reliable performance, accuracy, and durability uncomparable to any other 3D scanner.
– 3D Resolution: Up to 0.2mm
– 3D Reconstruction Rate: Up to 28 FPS
– Easily scan in sunlight
– Capture excellent color, texture, and geometry
– HD Mode removes noise for a tidy 3D model
Reliable down to the software
Leo works with Artec Studio and Artec Cloud, from data capture to processing, to provide an intuitive, streamlined workflow. Useful, reliable features include:
– Cloud-based collaboration
– Control scanner from browser
– Customizable functionality with dedicated API and SDK
– Regularly updated with enhancements and improvements
Artec Leo technical specifications
| General | |
|---|---|
| Technology | 3D Scanner |
| Type | Handheld |
| Product Dimensions (W × D × H) | 231×162×230mm (9.09”×6.38”×9.06”) |
| Product Weight | 2.6kg (5.7lb) |
| Accuracy & Resolution | |
| 3D Point Accuracy | Up to 0.1 mm |
| 3D Resolution | Up to 0.2 mm |
| 3D Accuracy Over Distance | Up to 0.1 mm + 0.3 mm/m |
| Algorithms | |
| Algorithms | HD Mode Hybrid Geometry and Texture Tracking Geometry and Texture Based Data Processing Algorithms Auto Background Removal |
| Field of View | |
| Working Distance | 0.35 – 1.2m |
| Volume Capture Zone | 160,000 cm³ |
| Linear Field of View H × W @ Closest Range | 244 × 142mm |
| Linear Field of View H × W @ Furthest Range | 838 × 488mm |
| Angular Field of View H × W | 38.5 × 23° |
| Texture | |
| Texture Resolution | 2.3 mp |
| Colors | 24 bpp |
| Photo Texture | Yes |
| Capture Rate | |
| 3D Reconstruction Rate for Real-Time Fusion | up to 22 fps |
| 3D Reconstruction Rate for 3D Video Recording | up to 44 fps |
| 3D reconstruction rate for 3D video streaming | up to 80 fps |
| Data Acquisition Speed | up to 35 mln points/s |
| 3D Exposure Time | 0.0002 s |
| 2D Exposure Time | 0.0002 s |
| Light Source | |
| 3D Light Source | VCSEL |
| 2D Light Source | White 12 LED Array |
| Hardware | |
| Position Sensors | Built-in 9 DoF inertial system |
| Display/Touchscreen | Integrated 5.5” half HD, CTP, Optional Wi-Fi/Ethernet video streaming to external device |
| Multi-Core Processing | Yes |
| Embedded Processors | NVIDIA® Jetson™ TX2 Quad-core ARM® Cortex®-A57 MPCore Processor NVIDIA Maxwell™ 1 TFLOPS GPU with 256 NVIDIA® CUDA® Cores |
| Interface | Wi-Fi, Ethernet |
| Internal Hard Drive | 512 GB SSD |
| Computer Requirements | |
| Scanning | No computer required |
| Data Processing | Windows 8.1, 10 (x64), Windows 11 |
| Recommended | Intel Core i7 or i9 64+ GB RAM NVIDIA GPU with 8+ GB VRAM CUDA 6.0+ |
| Minimum Requirements (HD) | Intel Core i7 or i9 32 GB RAM NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM |
| Minimum Requirements (SD) | Intel Core i5, i7 or i9 32GB RAM GPU with 2 GB RAMA computer is needed only for data processing. Scanning does not require a computer. |
| Output Formats | |
| 3D Mesh | OBJ, PLY, WRL, STL, AOP, ASC, PTX, E57, XYZRGB |
| CAD | STEP, IGES, X_T |
| Measurements | CSV, DXF, XML |
| Power Source | |
| Power Source | Built-in exchangeable battery Optional AC power |
Artec 3D Scanners comparation
 |  |  | |
|---|---|---|---|
| Model | Artec Eva Lite | Artec Eva | Artec Spider II |
| Scanner Type | Handheld | Handheld | Handheld |
| Object Size | 20 – 50 cm (Medium) | 20 – 50 cm (Medium) | 5 – 50 cm (Small to Medium) |
| Accuracy, up to | 0.1mm | 0.1mm | 0.05mm |
| Resolution, up to | 0.5mm | 0.2mm | 0.05mm |
| Target-Free Tech | ✔ | ✔ | ✔ |
| Color + Geometry Tracking | — | ✔ | ✔ |
| Scanning Software | Artec Studio | Artec Studio | Artec Studio |
| 3D Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | Affordable and accurate. | Best-seller. Fast, versatile, and accurate. | A metrological structured-light 3D scanner, set apart with its ability to render complex geometry, sharp edges, and fine details in ultra-high resolution. |
 |  |  | |
| Model | Artec Leo | Artec Micro II | Artec Point |
| Scanner Type | Handheld, Tetherless | Desktop | Handheld |
| Object Size | 20 – 200 cm (Medium to Large) | <90×60×60mm – 20 cm (Extra Small to Small) | >20 cm (Small to Large) |
| Accuracy, up to | 0.1 mm | 0.005mm | 0.002mm repeatability | up to 0.02mm |
| Resolution, up to | up to 0.2mm | TBC | up to 0.02mm |
| Target-Free Tech | ✔ | Yes | — |
| Color + Geometry Tracking | ✔ | Yes | — |
| Scanning Software | Onboard Software | Artec Studio | Artec Studio |
| 3D Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC |
| Features | User-friendly portable 3D scanner with a built- in touchscreen and intuitive UI for easy 3D scanning. | High-accuracy desktop 3D scanner for an automated, one-click solution for small to tiny objects. | High-accuracy handheld 3d scanner for reliable, targeted accuracy to capture metrology-grade results every time. |
 |  | ||
| Model | Artec Metrology Kit | Artec Ray II | |
| Scanner Type | Photogrammetry | Long-Range | |
| Object Size | >20 cm (Medium to XL) | >50 cm (Large to XL) | |
| Accuracy, up to | 0.002mm | 1.9mm @ 10m | |
| Resolution, up to | N/A | 3 / 6 / 12mm @ 10m | |
| Target-Free Tech | — | ✔ | |
| Color + Geometry Tracking | — | ✔ | |
| Scanning Software | Artec Metrology Kit Plugin for Artec Studio | Onboard Software Artec Remote App Artec Studio | |
| 3D Mesh Export Formats | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | OBJ, PLY, WRL, STL, AOP, ASC, Disney PTX (PETX), E57, XYZ, RGB, OBC | |
| Features | Photogrammetry kit w/ metrology-grade precision & volumetric accuracy for inspection, reverse engineering, and other industrial measurement applications. | Powerful long-range laser 3D scanner for precise capture of massive objects with remarkable speed and high accuracy. |
