Description

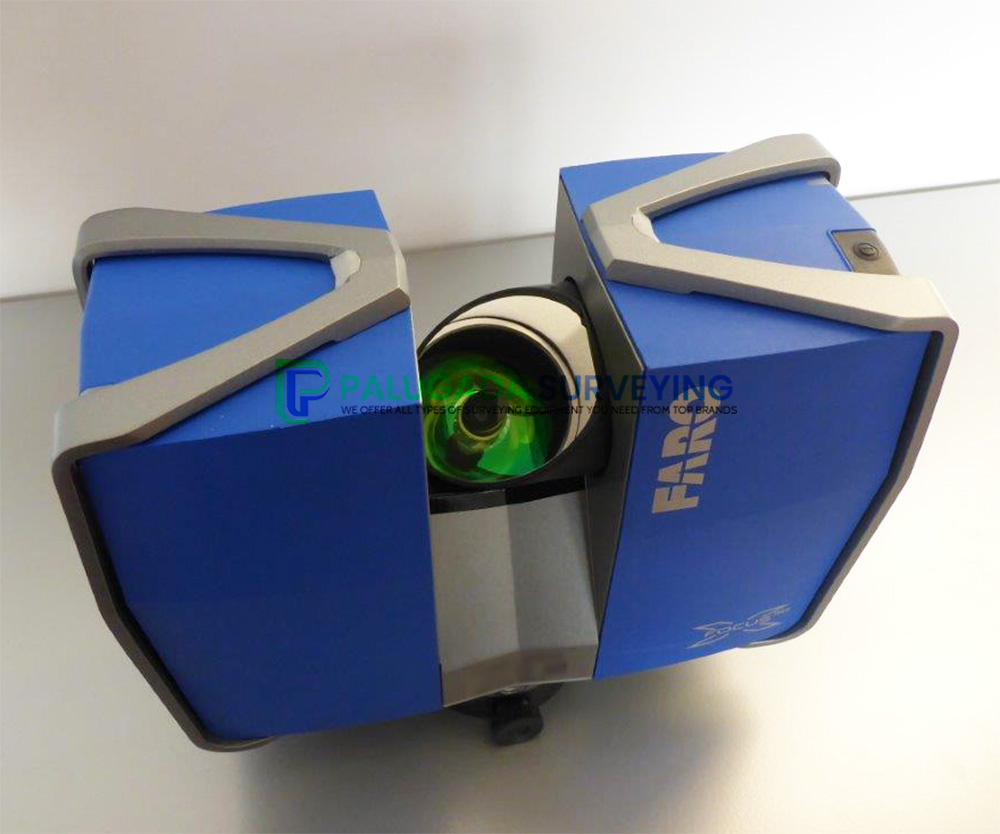

The FARO Focus3D X 330 is a high-speed 3D scanner with extra long range, it can scan objects up to 330 metres away even in direct sunlight.
Includes:
- FARO Laser Scanner Focus3D X 330, GPS, Compass, Altimeter (barometer), Dual-axis Compensator and WLAN
- 1x License SCENE Software
- 1x Year Maintenance Contract for SCENE Software
- Faro Scene Version 7 Software License USB Dongle
- Power Block Battery and 1 extra Power Block Battery
- Power Dock & Charger
- 12v Car adaptor
- 6 200MM Target spheres with tripod mount kits
- 12 80MM Target, trajectory spheres
- Compact tripod & Manfrotto folding dolly for Tripod
- 32GB SD Card, SD Card Reader and Card Cover
- 1x Rugged Transport Case with Wheels
- Fresh certificate of calibration will sent to new owner
FARO Laser Scanner Focus3D X 330, The Perfect Instrument for 3D Documentation and Land Surveying
FARO X 330 is the high-speed 3D scanner for extended ranges. It can scan objects up to 330 meters away even in direct sunlight, delivering realistic and true-to-detail scan results.With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications.
FARO X 330 With its increased range and scan quality, the FARO Focus3D X 330 HDR considerably reduces the effort involved in measuring and post-processing. The 3D scan data can easily be imported into all commonly used software solutions for accident reconstruction, architecture, civil engineering, construction, forensics, industrial manufacturing and land surveying. Distance dimensions, area and volume calculations, analysis and inspection tasks and documentation can thus be carried out quickly, precisely and reliably.
HDR (High Dynamic Range) PHOTO OVERLAY
With the Focus3D HDR functionality, challenging lighting situations will never subtract users’ scan results. Predefined HDR profiles increase the picture quality recorded in very bright or dark environments
HD PHOTO RESOLUTION
The increased camera resolution of Focus3D X 330 HDR delivers extraordinary color overlays for scanned point clouds. This improves the visualization of important details on site.
OUTDOOR SCANNING CAPABILITY
The Focus3D X 330 HDR is able to perform fast and highly precise scanning in direct sunlight.
EXTENDED SCANNING – 330M RANGE
The Focus3D X 330 HDR can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.
EASY POSITIONING – INTEGRATED GPS RECEIVER
With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications
BENEFITS
Safe and fast as-built data capturing with superior color detail
Reliable life-like visualization, even under extreme lighting conditions and onenormous distance
Reduced complexity by integrated scanning and imaging workflow for all kinds of measurements even in challenging environments
Increased onsite productivity due to one person operation
Revolutionary price/performance ratio,as all-in-one device
The FARO Laser scanner Focus3D X 330 is a compact 3D scanner mounted on tripod. With an intuitive touchscreen display, users can control all of the scanner functions with an easy-to-use interface. Multiple scans from different positions can then be automatically placed to create a cohesive point cloud enabling an accurate measureable 3D mesh of most complex and large structures. The FARO Laser scanner Focus3D X 330 is specially designed for outdoor applications and comes with an integrated GPS receiver. 330 stands for the working distance of the 3D scanner, between 0.6 and 330 meters.
Faro Focus 3D-X330 Laser Scanner, a high-speed 3D scanner, extra long range, integrated GPS
- Distance accuracy up to ±2mm
- Range from 0.6m up to 330m
- Noise reduction 50%
- HDR photo overlay
- HD photo resolution up to 165 megapixel colour
Scanner Description
FARO Announces New Laser Scanner and Instant Rendering Software for BIM-CIM and Public Safety Customers
The FARO Focus3D X 330 HDR is specially designed for outdoor applications due to its small size, light weight, extra long range, extended scanning possibilities even in direct sunlight and easy positioning with an integrated GPS receiver. HDR imaging and HD photo resolution ensure true-to-detail scan results with high data quality.
- Distance accuracy up to ±2mm
- Range from 0.6m up to 330m
- Noise reduction 50%
- HDR photo overlay
- HD photo resolution up to 165 megapixel color
