Description

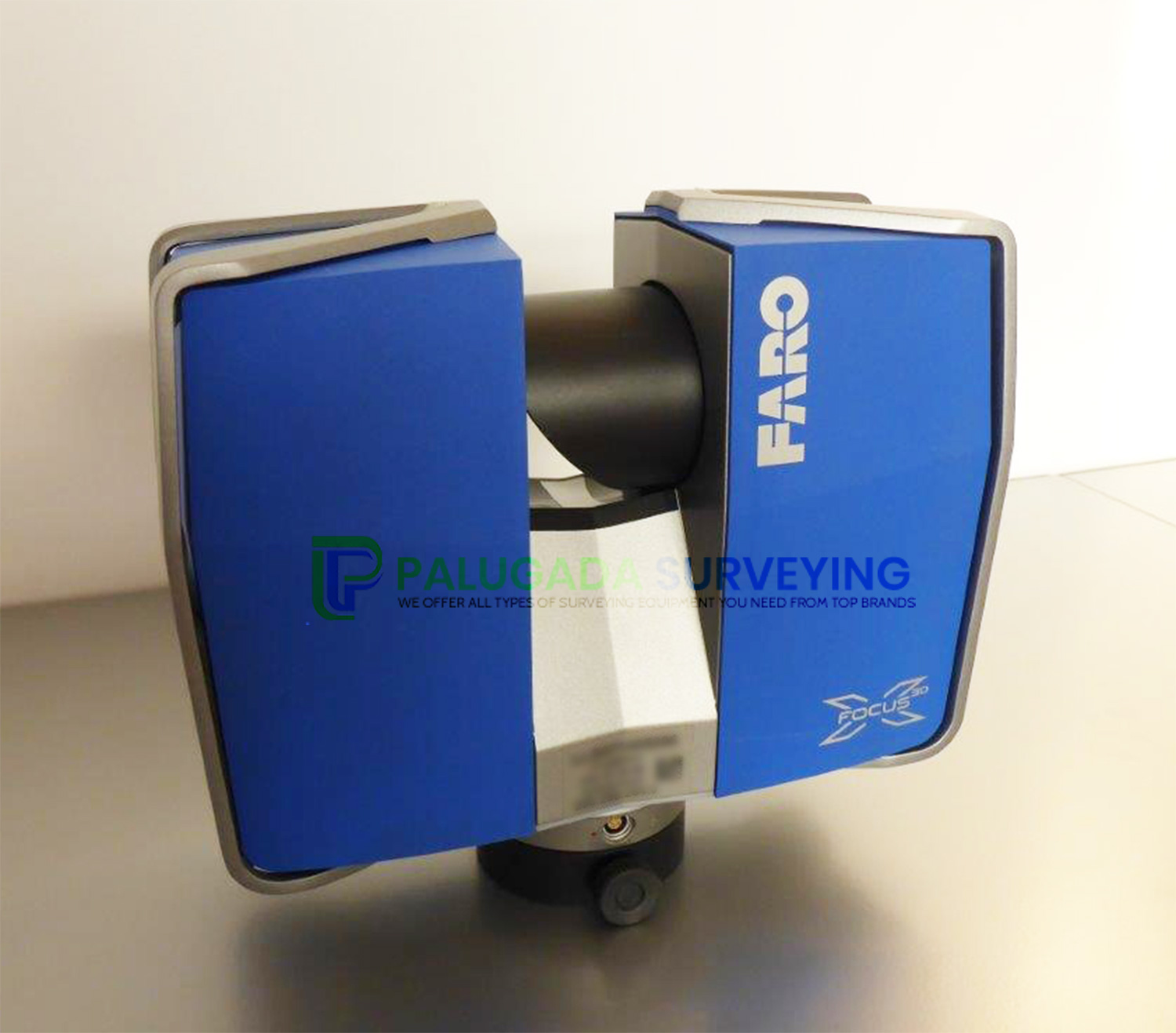

FARO Focus3D X 330 HDR Laser Scanner and Instant Rendering Software for BIM-CIM and Public Safety Customers
The FARO Focus3D X 330 HDR is specially designed for outdoor applications due to its small size, light weight, extra long range, extended scanning possibilities even in direct sunlight and easy positioning with integrated GPS receiver. HDR imaging and HD photo resolution ensure true-to-detail scan results with highest data quality.
- Distance accuracy up to ±2mm
- Range from 0.6m up to 330m
- Noise reduction 50%
- HDR photo overlay
- HD photo resolution up to 165 megapixel colour
Sale includes;
- 1x Focus 3D-X330, GPS, Compass, Altimeter (barometer), Dual-axis Compensator and WLAN
- 1x Power Block Battery
- 1x Power Dock
- 1x 32GB SD Card
- 1x SD Card Reader
- 1x SD Card Cover
- 1x Optical Cleaning Set
- 1x Quick Charge Power Supply
- 1x Car Power Supply
- 1x Ruggedized Protection and Transport Cover in Aluminium
- 1x Panorama Quick Release
- 1x Rugged Transport Case with Wheels
Options:
- 1x License SCENE Software
- 1x Year Maintenance Contract for SCENE Software
FARO Focus3D X 330 HDR Laser Scanner and Instant Rendering Software for BIM-CIM and Public Safety Customers.
The smallest and lightest laser scanners on the market – Focus3D X Series are ideal tools for indoor and outdoor applications. The fast and accurate laser scanners Focus3D offer everything you might expect from professional 3D laser scanners – with FARO’s established and well-known level of simplicity.
FARO Focus3D X 330 offers extra long range – 330m. The HDR imaging function and high-resolution photographs deliver realistic and true-to-detail scan results with spectacular image quality. All scanner types offer the possibility to perform scanning even in bright sunlight. Remote scanning as well as almost limitless scan data sharing via SCENE Webshare make the laser scanning solution truly mobile.
HDR (High Dynamic Range) PHOTO OVERLAY
With the Focus3D HDR functionality, challenging lighting situations will never subtract users’ scan results. Predefined HDR profiles increase the picture quality recorded in very bright or dark environments
HD PHOTO RESOLUTION
The increased camera resolution of Focus3D X 330 HDR delivers extraordinary color overlays for scanned point clouds. This improves the visualization of important details on site.
OUTDOOR SCANNING CAPABILITY
The Focus3D X 330 HDR is able to perform fast and highly precise scanning in direct sunlight.
EXTENDED SCANNING – 330M RANGE
The Focus3D X 330 HDR can scan objects up to 330 meters away. Large buildings, land-site excavations and vast terrains can be surveyed with fewer scans, thus resulting in quicker project scanning completion.
EASY POSITIONING – INTEGRATED GPS RECEIVER
With its integrated GPS receiver, the laser scanner is able to correlate individual scans in post-processing making it ideal for surveying based applications
Faro Focus3D X 330 HDR Laser Scanner BENEFITS
- Safe and fast as-built data capturing with superior color detail
- Reliable life-like visualization, even under extreme lighting conditions and onenormous distance
- Reduced complexity by integrated scanning and imaging workflow for all kinds of measurements even in challenging environments
- Increased onsite productivity due to one person operation
- Revolutionary price/performance ratio,as all-in-one device
SOFTWARE SCENE
FARO SCENE 3D laser scanner software is specifically designed for the FARO Focus3D Laser Scanner. SCENE processes and manages scanned data efficiently and easily by using automatic object recognition and scan registration and positioning. SCENE can also colourise scans. This point-cloud software for scanners is extremely user-friendly and generates high-quality data in next to no time.
Now scanned data can be easily shared worldwide with project partners using FARO’s cloud-based hosting solution SCENE WebShare.
