Faro Focus S70 HDR 3D Laser Scanner

$10,500

The ultra-portable FocusS 70 enables fast, straightforward and ultra-high accurate measurements of objects and buildings.

Description

The ultra-portable FARO Focus S-70 with HDR photography, delivers industrial grade performance with an exceptional price/performance ratio. This includes an Ingress Protection (IP) Rating of 54 for use in high particulate and wet weather conditions, HDR imaging and extended temperature range.

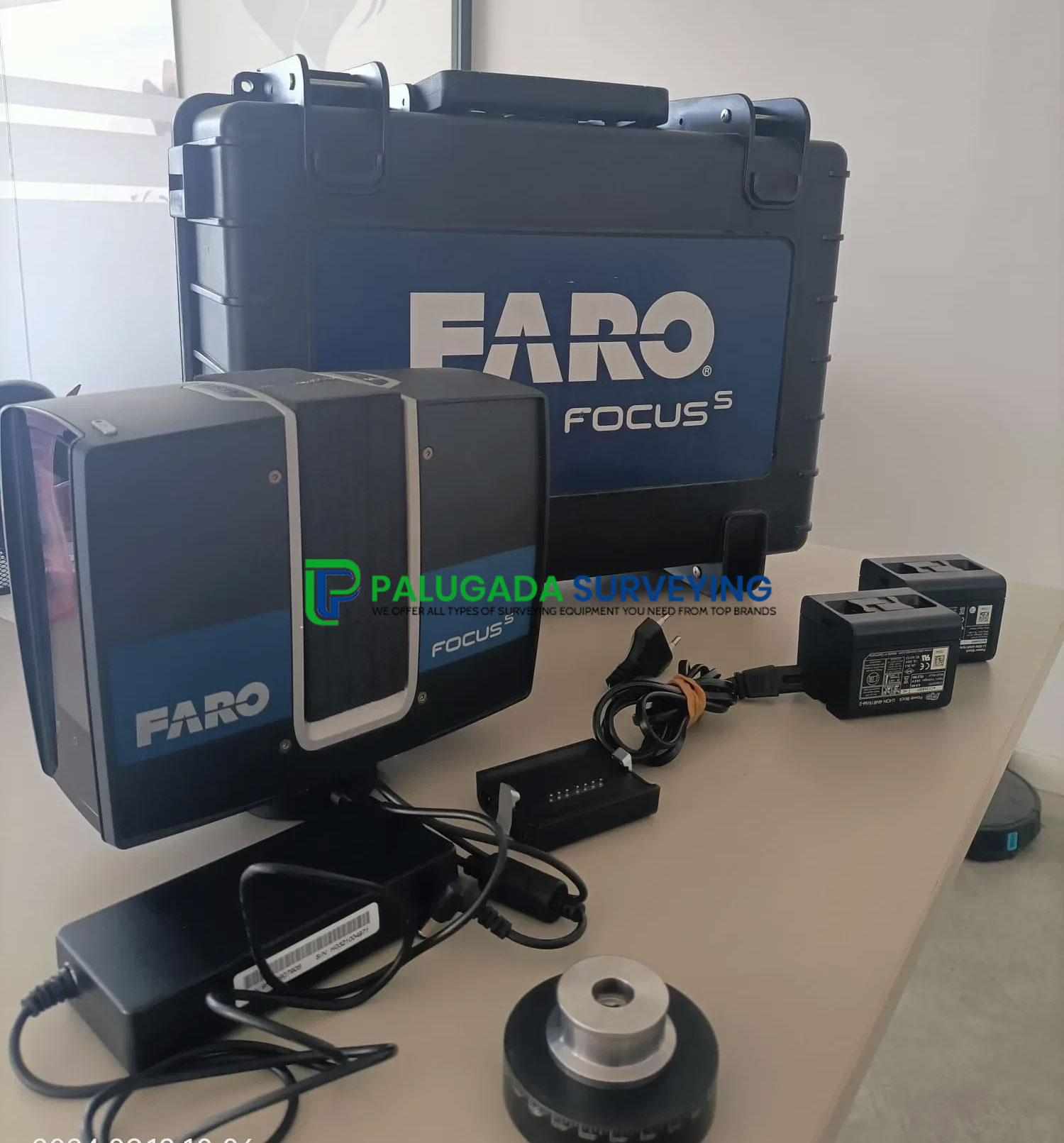

FARO Focus S 70 package includes;

  • Faro Focus S 70 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality
  • Battery Power Block, Battery Power Dock
  • 90W Power Supply
  • Optic Cleaning Fluid, Optic Cleaning Tissues
  • 32GB SD Card, SD Card Reader, SD Card Cover
  • Allen Wrench
  • Rugged Transport Case
  • Calibration Certificate
  • Quick Start Guide

FARO Focus S70

FARO Focus S70 Laser Scanner delivers industrial grade performance with an exceptional price/performance ratio. This includes an Ingress Protection (IP) Rating of 54 for use in high particulate and wet weather conditions, HDR imaging and extended temperature range. Additionally, users will continue to have unrestricted freedom of choice to leverage the software tools most beneficial to their own workflow, including FARO SCENE and 3rd party software solutions such as Autodesk ReCap.

FARO Focus S70 Laser Scanner delivers industrial grade performance with an exceptional price/performance ratio. This includes an Ingress Protection (IP) Rating of 54 for use in high particulate and wet weather conditions, HDR imaging and extended temperature range. Additionally, users will continue to have unrestricted freedom of choice to leverage the software tools most beneficial to their own workflow, including FARO SCENE and 3rd party software solutions such as Autodesk ReCap.

FARO FocusS70 also delivers a set of incremental, value-added functionality that makes it a perfect fit for those applications that require the short range scanning power of the FocusM 70, the next level accuracy of the FocusS150 or FocusS350 and the unique power of real time, one-site registration.

  • Short Range with Best in Class Accuracy: Designed for both indoor and outdoor applications that require scanning up to 70 meters and with accuracy of /- 1mm
  • More Data Captured Faster: Delivers acquisition speed of almost 1,000,000 points per second
  • Improved Productivity and Confidence: Supports the real time, on-site registration functionality recently announced by FARO with the introduction the SCENE 7.0 software suite

KEY FEATURES FARO Focus S70

  • ACCURACY: The FocusS captures environments with increased accuracy and distance with dual-axis compensator  and angular measurement
  • ON-SITE COMPENSATION: With the on-site compensation functionality users can verify and adjust the FocusS compensation  on-site, ensuring high quality scan data
  • ACCESSORY BAY: The accessory bay allows users to connect additional 3D laser scanning accessories to support a variety of projects
  • TEMPERATURE: Extended temperature range allows scanning in challenging environments. The Focus can operate in temperatures as low as -20°C and up to 55°C.
  • IP RATING – CLASS 54: With the sealed design and certified with the industry standard Ingress Protection (IP) Rating, IP54, the Focus can be used in high particulate and wet weather conditions
  • COMPACT AND PORTABLE: The Focus Laser Scanners measure at 230 x 183 x 103mm and weigh at 4.2kg making them the smallest and most light weight scanners in the market. The devices are equipped with a waterproof transport and ergonomic carrying case for maximum portability

LASER SCANNERS FOR SHORT, MEDIUM AND LONG RANGE APPLICATIONS

FARO Focus Laser Scanners are specifically designed for both indoor and outdoor measurements in industries such as Architecture, Engineering, Construction, Public Safety and Forensics or Product Design. All devices capture real world information into the digital world to deliver information used to analyze, collaborate and execute better decisions to improve and maintain the overall project and product quality.

All FocusS and FocusM scanners are equipped with recognizable features, such as Ingress Protection (IP) Rating, extended temperature range, HDR functionality, all in an ultra portable size.

The Laser Scanner FocusS Series offers more advanced functionality in addition. Besides an increased distance and angular accuracy all FocusS scanners are equipped with an internal accessory bay and an on-site compensation function quality verification. When utilized with SCENE Software, the FocusS supports real time, on-site registration which enables 3D scan data to be wirelessly transmitted, processed, aligned and registered directly to an on-site mobile device/PC in real time.

BENEFITS

  • Confidence and documented data quality by traceable vendor calibration and market leading on-site compensation.
  • Scan in challenging environments while providing protection from dust, debris and water splashes
  • The Focus Laser Scanner portfolio offers the most economic 3D scanning solution for all requirements and budgets.
  • Minimum training effort is ensured by the intuitive and easy to operate touch-screen interface as well as hands-on online tutorials.
  • Efficient integration into existing software infrastructures and workflows are ensured by interfaces into various standard CAD systems

The ultra-portable Faro Focus S70 records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 70m per scan. The intuitive touch-screen of the Focus S models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural colour overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.

The Focus S 70 is a mid-range device offering precise scanning up to 70m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Faro Focus S70 HDR 3D Laser Scanner Technical Specifications:

  • Range: 0.6 – 70m
  • High Dynamic Range (HDR) Photo Recording 2x/3x/5x
  • Measurement Speed: up to 976,000 points/second
  • Ranging Error: ± 1mm
  • Sealed Design – Ingress Protection (IP) Rating Class 54
  • On-site Compensation
  • Accessory Bay
  • Angular Accuracy: 19 arc sec for vertical/horizontal angles
  • Integrated Colour Camera: Up to 165 mio. pixel
  • Laser Class: Laser class 1
  • Weight: 4.2kg
  • Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
  • Size: 230 x 183 x 103mm
  • Scanner Control: via Touch Screen Display and WLAN

Complete information of Technical Specification Sheet for the Focus and S70
