Faro Focus S 150 Laser Scanner

Description

Faro Focus S 150 Laser Scanner

The ultra-portable Faro Focus S150 enables fast, straightforward and ultra-high accurate measurements of objects and buildings. It records architectural façades, complex structures, production and supply facilities, accident sites, and large-volume components delivering realistic and true-to-detail scan results with a range of 150m per scan.

The intuitive touch-screen of the Focus models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural color overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.

The Focus S 150 is a mid-range device offering precise scanning up to 150m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.

Faro Focus S 150 Laser Scanner Technical Spesification:

• Range: 0.6 – 150m
• High Dynamic Range (HDR) Photo Recording 2x/3x/5x
• Measurement Speed: up to 976,000 points/second
• Ranging Error: ± 1mm
• Sealed Design – Ingress Protection (IP) Rating Class 54
• On-site Compensation
• Accessory Bay
• Angular Accuracy: 19 arc sec for vertical/horizontal angles
• Integrated Colour Camera: Up to 165 mio. pixel
• Laser Class: Laser class 1
• Weight: 4.2kg
• Multi-Sensor: GPS, Compass, Height Sensor, Dual Axis Compensator
• Size: 230 x 183 x 103mm
• Scanner Control: via Touch Screen Display and WLAN

Complete information of Technical Specification Sheet for the Focus S150

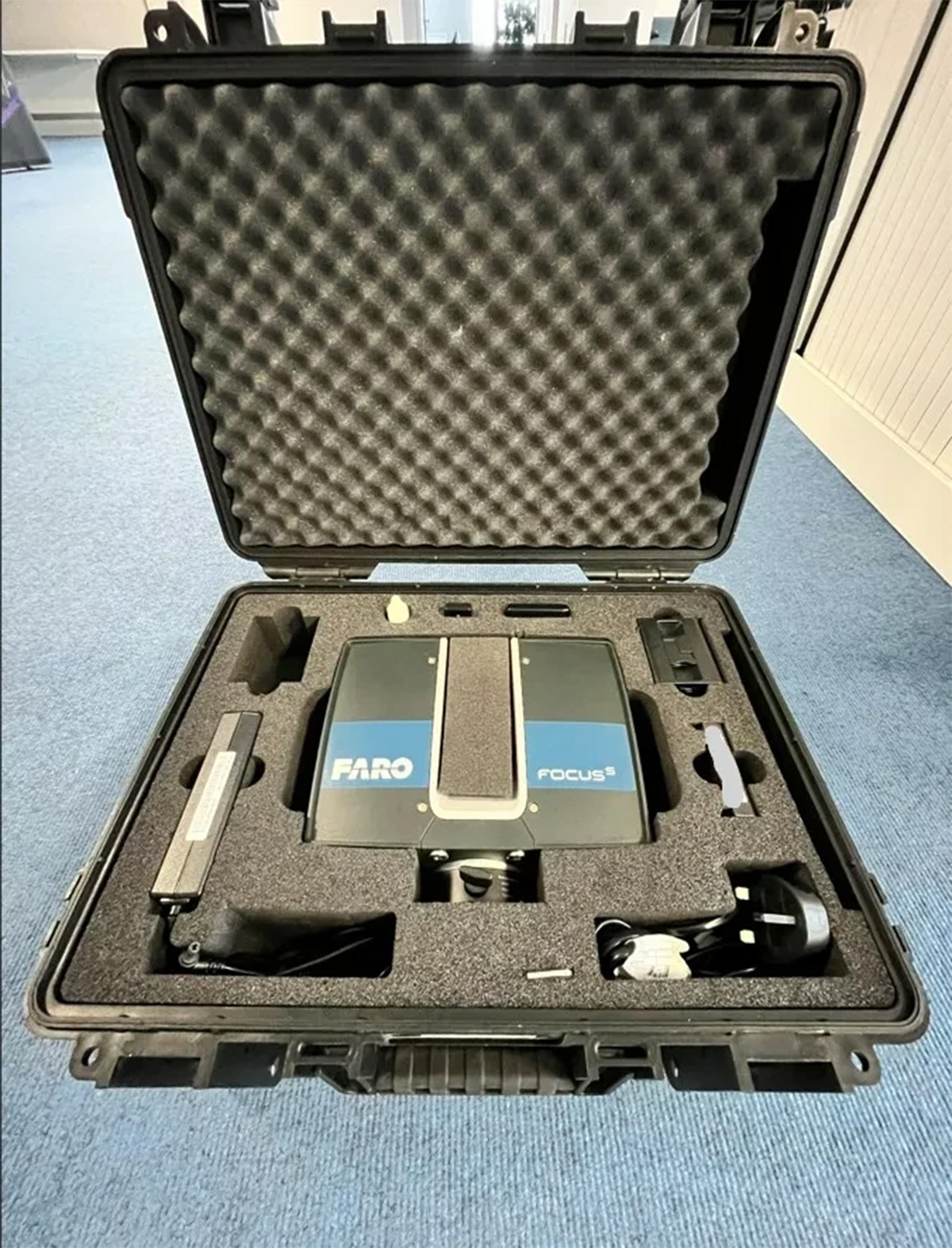

Faro Focus S 150 Laser Scanner package includes:

• Faro Focus S 150 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality
• Battery Power Block, Battery Power Dock, 90W Power Supply
• Optic Cleaning Fluid, Optic Cleaning Tissues
• 32GB SD Card, SD Card Reader, SD Card Cover
• Allen Wrench
• Rugged Transport Case
• Calibration Certificate
• Quick Start Guide
