Creaform HandySCAN 700 3D Scanner

Description

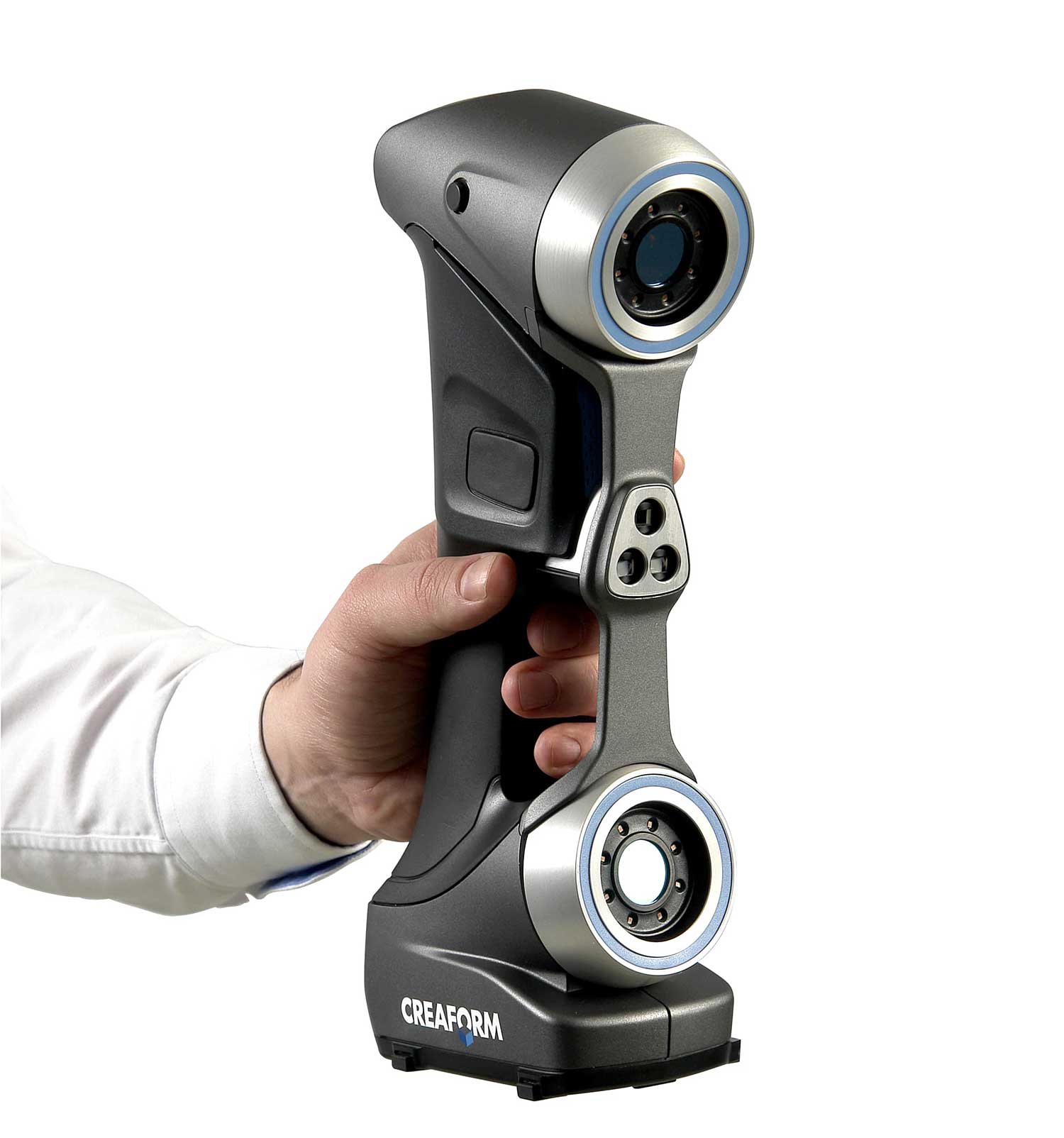

Creaform HandySCAN 700 3D Scanner

Proven and trusted technology
Offering the best value for money, a smart purchase because of its accessible price and high-quality performance. Designed and manufactured in North America and with more than 5,000 users already, this proven and trusted technology demonstrates Creaform’s prioritization of attentive service and reliability.

– Best price / performance option
– Designed and manufactured in North America
– More than 5,000 users worldwide
– Supported by a global team of engineers and technicians

Portability
Using triangulation on optical reflectors to determine its relative position to the part, this handheld 3D scanner is a stand-alone device that does not require a tripod or any external tracking device to operate. Compact enough to fit into a small suitcase, it can be brought anywhere and used in any environmental conditions without its performance being affected.

– Lightweight and small
– 0.85 kg (1.9 lb)
– Fits into a suitcase
– Self-positioning with dynamic referencing
– On-the-go scanning
– Use it in-house or on site
– Quick set-up
– Up and running in less than 2 minutes

Simplicity & versatility
With its user-friendly interface and ergonomic design, this 3D measurement solution is easy to use and has a short learning curve regardless of the user’s experience or expertise level. Its versatility enables users to scan various objects no matter the part size, complexity, material, or color—all with the same device.

– Plug and play
– Simple user interface and real-time visualization
– Masters complex and difficult surfaces
– One device for all shapes and sizes

Specifications:
Accuracy : Up to 0.030 mm (0.0012 in)
Volumetric accuracy (based on part size) : 0.020 mm + 0.060 mm/m (0.0008 in + 0.0007 in/ft)
Volumetric accuracy with MaxSHOT Next™ | Elite : 0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft)
Measurement resolution : 0.050mm (0.0019 in)
Mesh resolution : 0.200 mm (0.0078 in)
Measurement rate : 480,000 measurements/s
Light source : 7 red laser crosses (+ 1 extra line)
Laser class : 2M (eye-safe)
Scanning area : 275 x 250 mm (10.8 x 9.8 in)
Stand-off distance : 300 mm (11.8 in)
Depth of field : 250 mm (9.8 in)
Part size range (recommended) : 0.1–4 m (0.3–13 ft)
Software : VXelements
Output formats : .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software : 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight : 0.85 kg (1.9 lb)
Dimensions (LxWxH) : 77 x 122 x 294 mm (3.0 x 4.8 x 11.6 in)
Connection standard : 1 X USB 3.0
Operating temperature range : 5-40 °C (41-104 °F)
Operating humidity range (non-condensing) : 10-90%
Certifications : EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE

Package includes:
– Creaform HandySCAN 700
– VXelements Software
– Power supply
– USB cable
– Calibration plate
– Carrying case
– USB cable
– 2,000 positioning targets
– 3 Year warranty on Parts and Labor
