Artec Eva 3D Laser Scanner

6,000.00$

Artec Eva has long been a popular handheld 3D scanner for creating crisp, accurate 3D models at high speed and resolution. Eva is a versatile solution for professionals, designed to scan all kinds of small and medium-sized objects, from mechanical parts to furniture, sculptures and the human body. An ideal choice for reverse engineering, rapid prototyping, and any application where accurate, high-quality 3D data is a must.

Category: Tag:

Artec Eva 3D Laser Scanner

This structured-light 3D scanner is the ideal choice for making quick, textured, and accurate 3D models of medium-sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution.

Light, fast, and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured-light scanning technology, it is an excellent all-around solution for capturing objects of almost any kind, including objects with black and shiny surfaces.

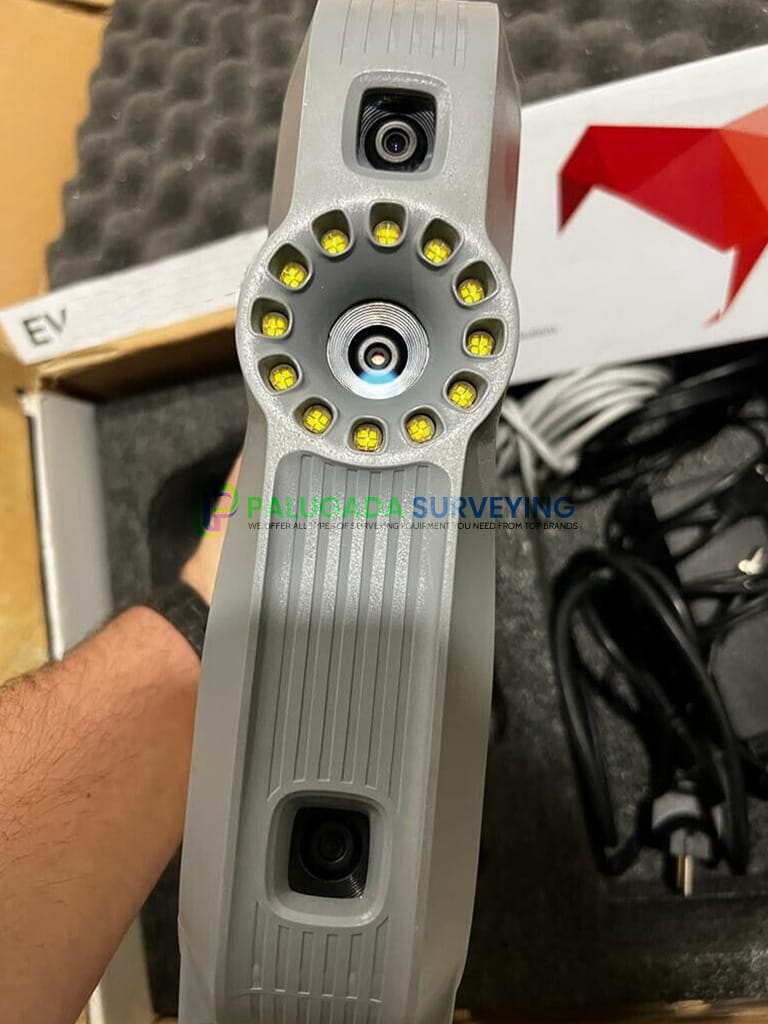

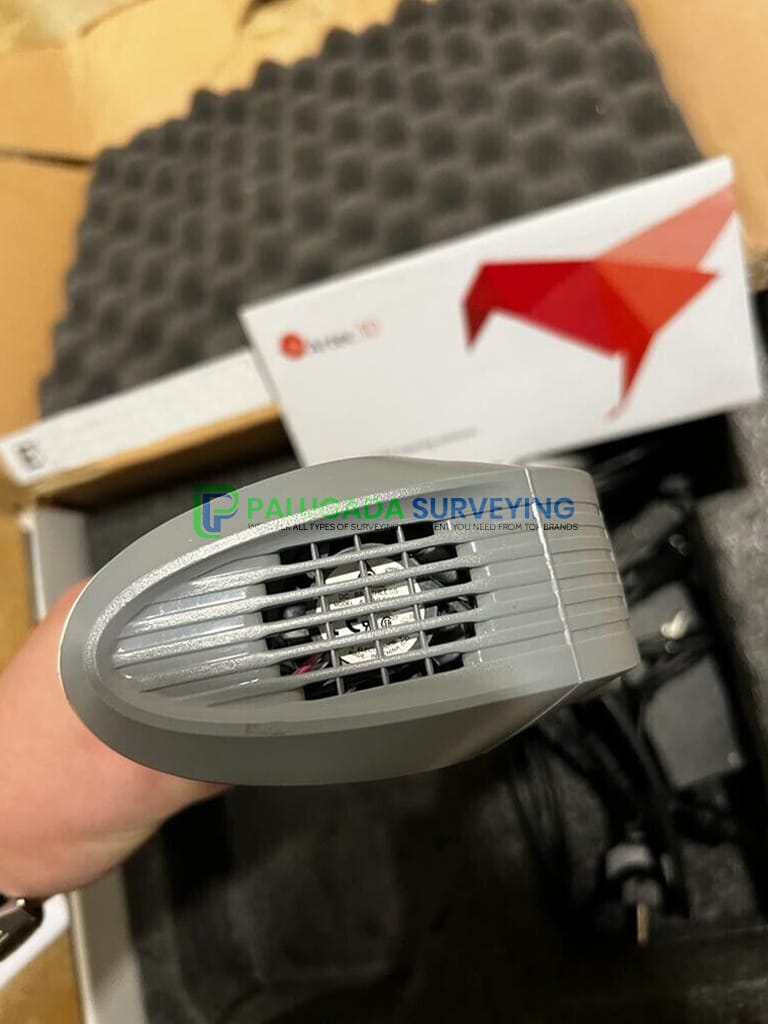

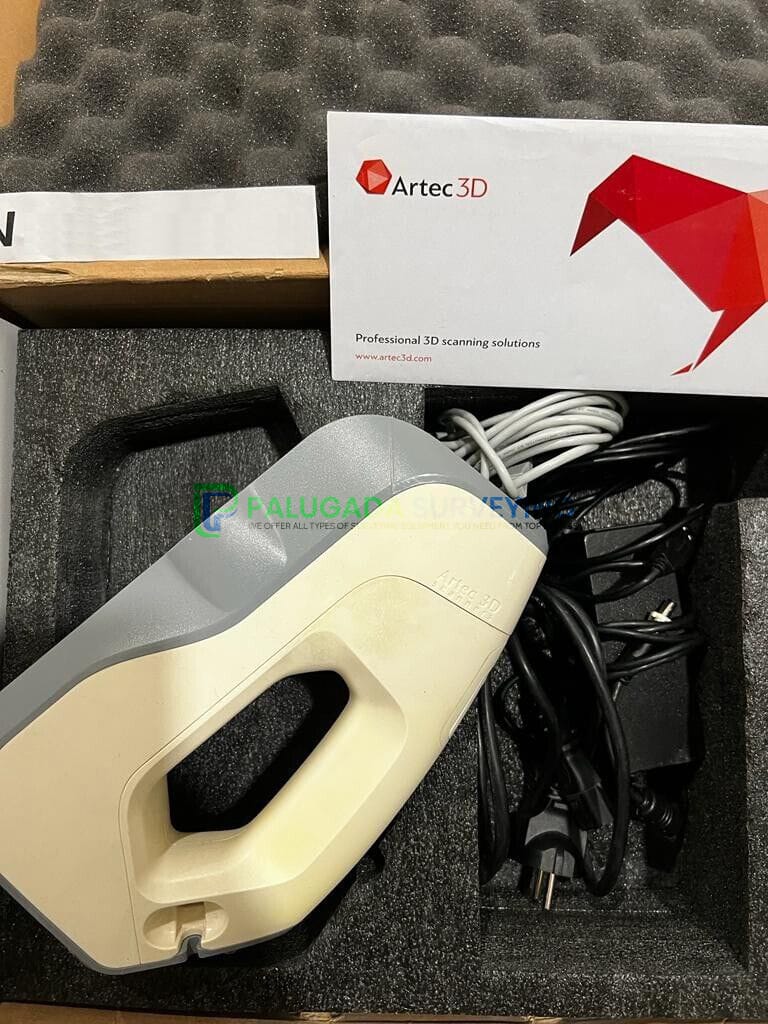

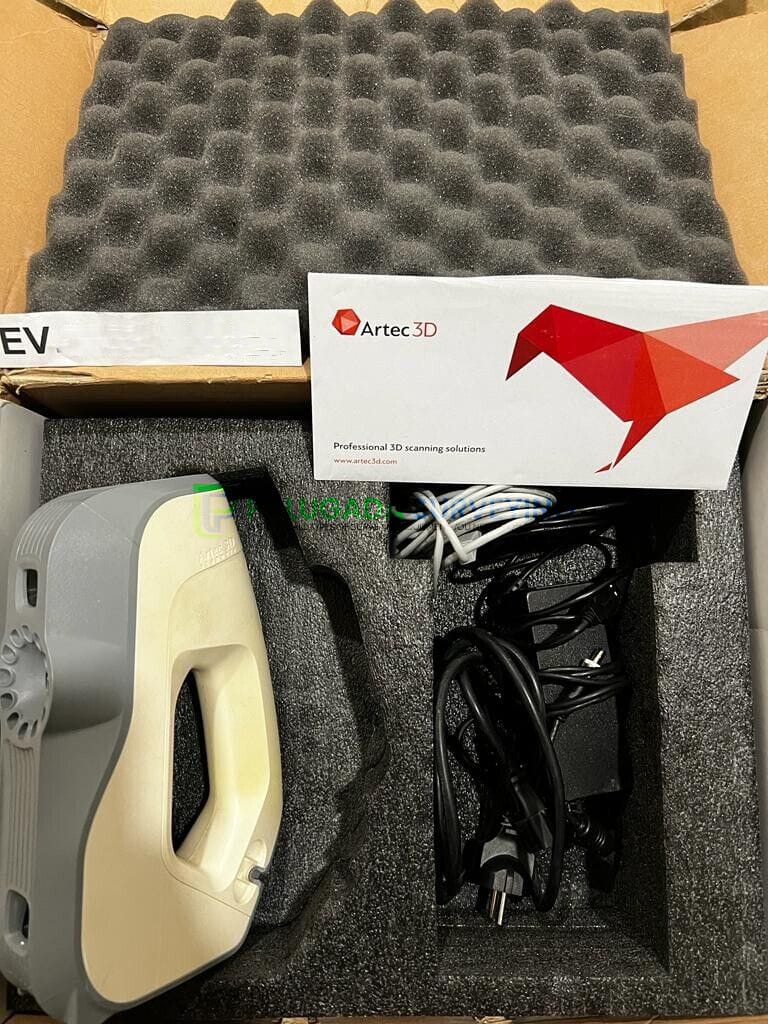

Artec Eva 3D Scanner, full-color 3D scanner, an Artec Studio Pro 14 Lifetime License includes, barely used by one owner only. Excellent ready to scan condition. This Artec Eva sale includes Artec Studio Pro lifetime, Power supply, Batteries, Battery belt pouch, Charger, Original Artec USB cables, Artec Original Box

Artec Eva 3D Scanner is like a video camera that captures in 3D! The Artec Eva captures up to 16 frames per second and is similar to a video camera which captures in 3D. Frames are aligned automatically in real-time, which makes scanning quick and easy.

Perfect for the creation of special effects, medical and bio-mechanical research. Eva’s textured models can also be used in such industries as animation, forensics and medicine. Extremely portable, these hand-held scanners can be used in the lab, onsite at your location, or outside.

The Artec video-based scanners’ outstanding measuring speed of up to 500,000 points per second make them many times faster than laser scanners and can be used to scan moving objects as well as stationary ones, opening new possibilities to customers where motion capture is needed as well as in more traditional industries.

Artec Eva Laser 3D Scanner SPECIFICATIONS

3D resolution: Up to 0.5 mm
3D point accuracy: Up to 0.1 mm
3D accuracy over distance: Up to 0.03% over 100 cm
Colors: 24 bpp
Texture resolution: 1.3 mp
Scanning technology: Structured light
Structured light source: Flashbulb (no laser)
Working distance: 0.4 – 1 m
Linear field of view: Closest range 214 x 148 mm
Linear field of view: Furthest range 536 x 371 mm
Angular field of view: 30 x 21°
Video frame rate: Up to 16 fps
Exposure time: 0.0002 sec
Data acquisition speed: Up to 2 mln points/sec.
Multi-core processing: Yes

OUTPUT FORMATS Artec Eva Laser 3D Scanner

3D formats: OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
Formats for measurements: CSV, DXF, XML

COMMON SPECIFICATIONS

Weight: 0.85 kg (1.9 lb)
Dimensions: 262 x 158 x 63 mm
Power consumption: 12V, 48W
Interface: USB 2.0, USB 3.0 compatible
Processing capacity: 40 mln triangles / 1 GB RAM

REQUIREMENTS

Processor: Intel I5 or I7
Memory: 12 GB
Video cards: NVIDIA or AMD
Recommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory
OS: Windows 7, 8, 10 – x64
Free disk space: 300 MB for installation
