Description
Trimble S5 3″ Robotic DR Plus Total Station, precisely serviced and calibrated by Trimble authorized and everything is in perfect working condition. Calibration Certificate with Trimble Certified 1-Year Hardware Warranty.

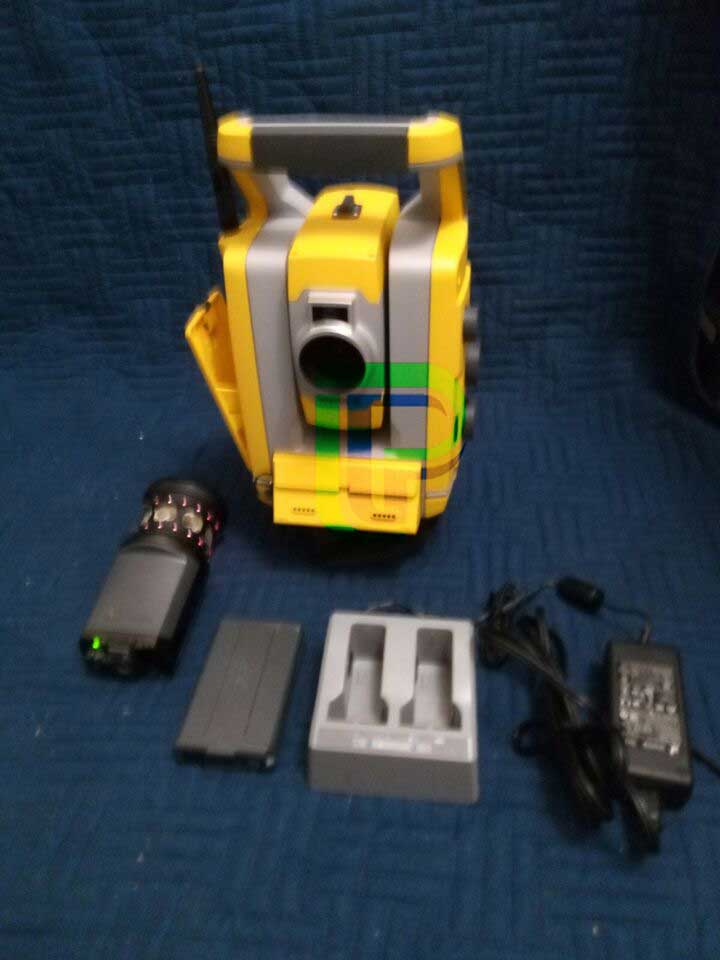

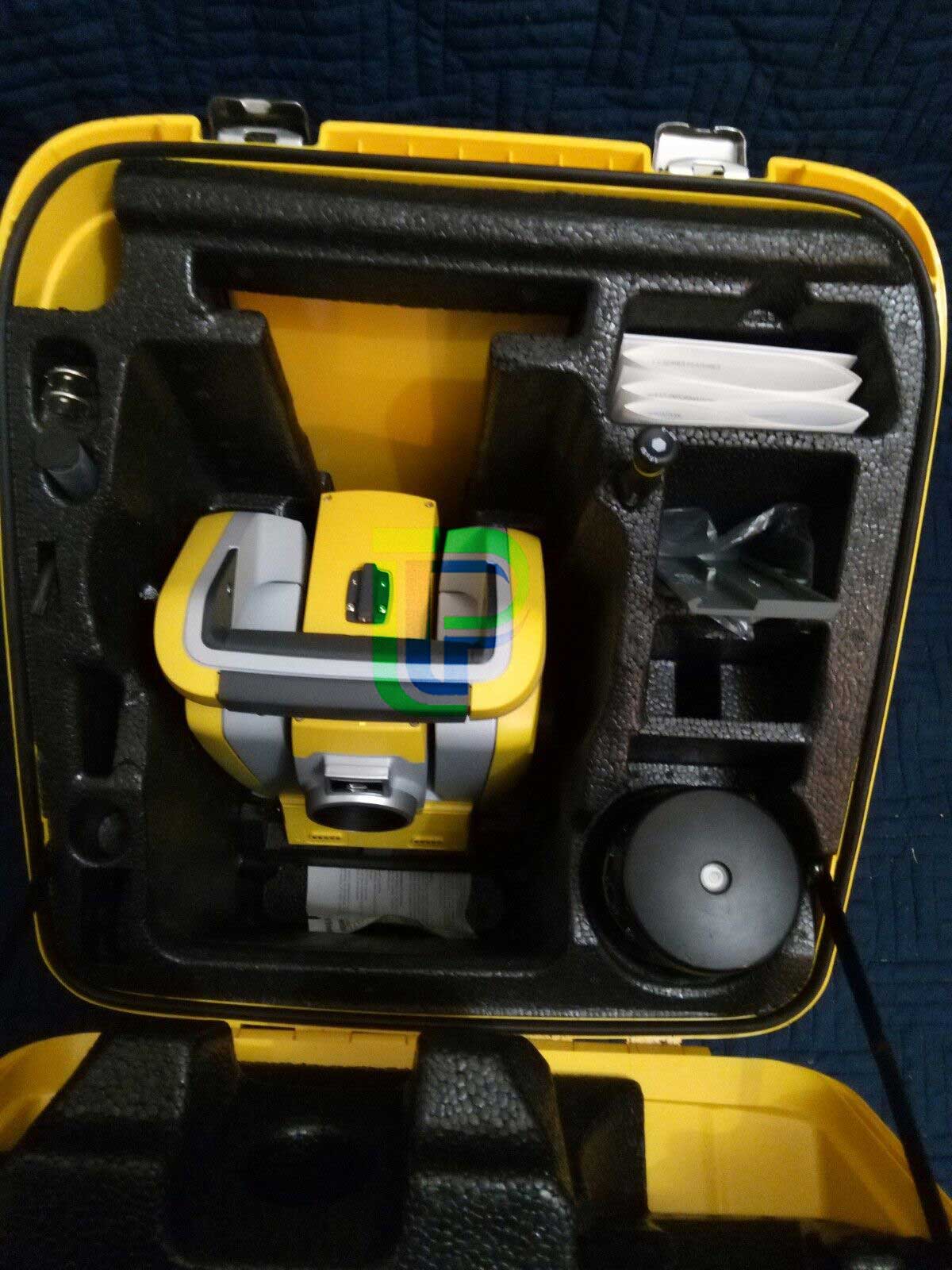

Includes:
- Trimble S5 3” Robotic Total Station
- Rugged Carrying Case
- Shoulder cary strapes
- 2X rechargable batteries
- Charging tray
- Power supply for charger
- Trimble Certified 1-Year Hardware Warranty with Calibration

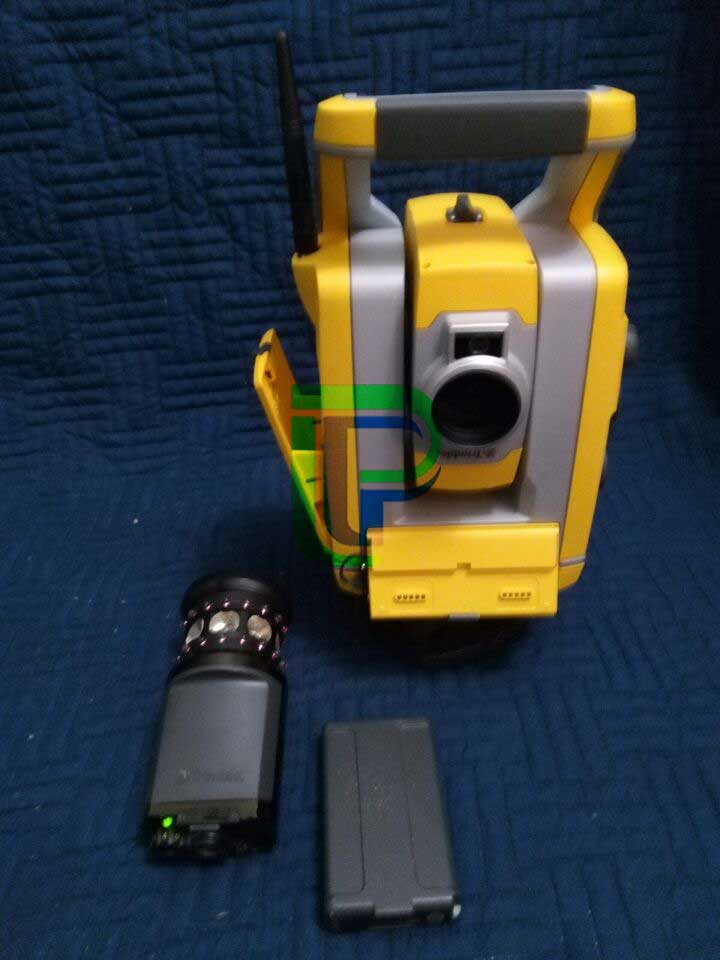

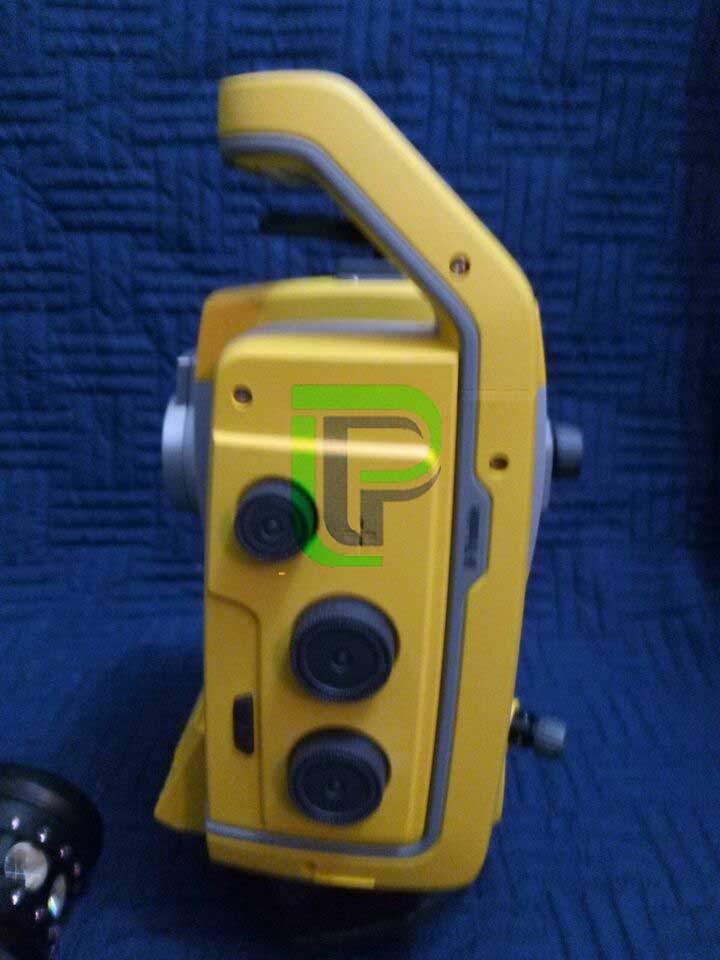

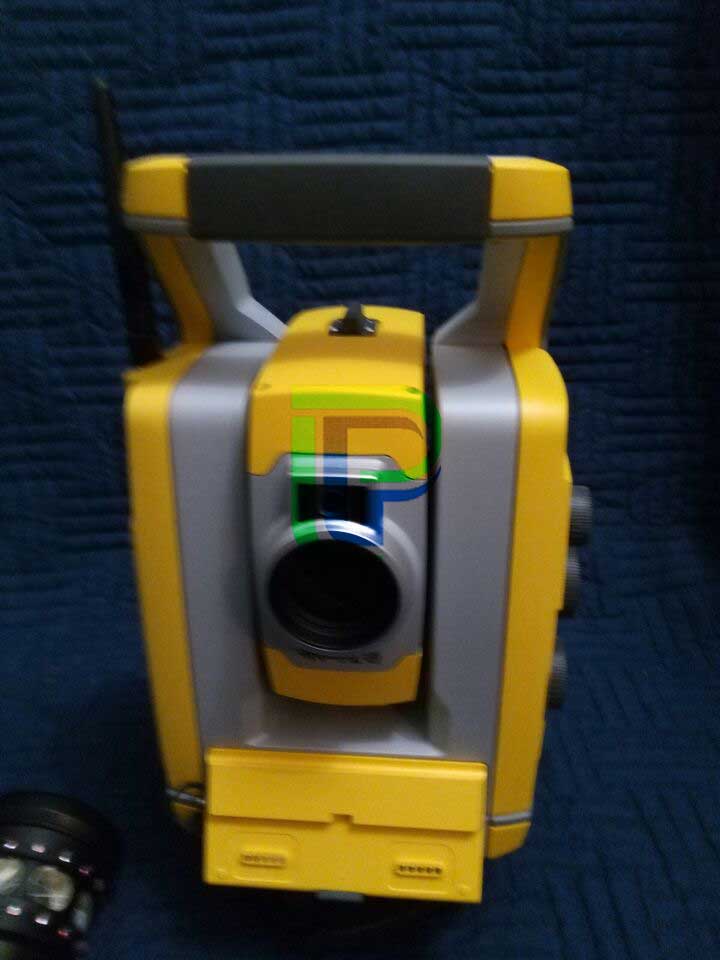

Trimble S5 Robotic DR Plus Total Station
All you need to perform efficient surveying campaigns is available in the Trimble® S5 Robotic Total Station solution: The Trimble S5 Total Station is built upon proven Trimble technologies like SurePoint, MagDrive and our DR Plus EDM, helping you work more efficiently while maintaining the highest accuracy possible. Smooth and silent, Trimble MagDrive electro-magnetic technology means fewer moving parts, which reduces servicing requirements. Trimble SurePoint ensures accurate pointing and measurements by actively correcting for unwanted movements like wind, handling, and sinkage. The Trimble DR Plus EDM allows you to measure with fewer instrument set-ups and enhance your direct reflex performance. The Trimble S5 is the perfect entry-level robot for a company just getting started or for the established multi-crew company looking for a cost-effective robotic solution.
Key Features
- Everything you need to perform survey campaigns
- Measure further and faster with the Trimble DR Plus EDM
- Trimble L2P real-time equipment management
- Seamless integration with the Trimble V10 Imagine Rover and GNSS receivers
- Intuitive Trimble Access Field Software
- Trimble Business Center Office Software for quick data processing
Features and capabilities
- Trimble DR Plus EDM delivers: Trimble S5 Autolock measuring technology means you can measure sites further and faster than ever before.
- Built with Trimble MagDrive: Turn-to points with lightning-fast speeds, rotating at 115 degrees per second with precision Trimble MagDrive™ technology.
- Integrated workflows: With your Trimble controller, seamlessly integrate with any Trimble GNSS receiver via Trimble Access™ field software, keeping all of your work in one place.
- Systems and accessories: Connect via Bluetooth to your Trimble controller or use the onboard Trimble TCU5 controller, plus Trimble Access, Trimble Business Center office software, and optical accessories including prisms, poles, and more.
Trimble S5 3″ DR+ Robotic Total Station Specifications:

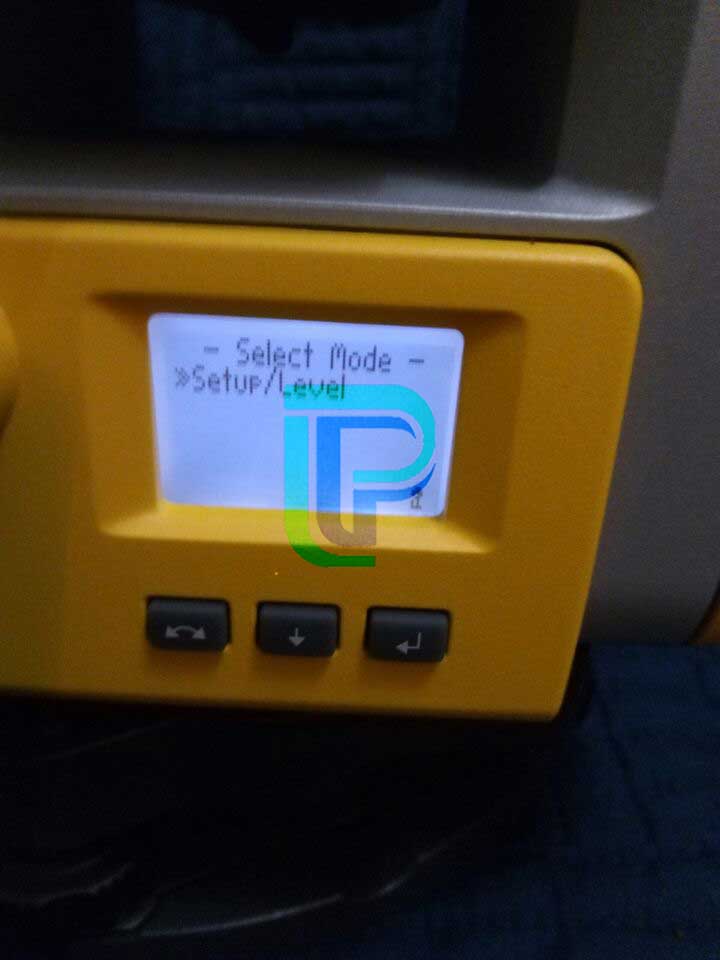

| PERFORMANCE | |
| Angle measurement | |
| Sensor type | Absolute encoder with diametrical reading |
| Accuracy (Standard deviation based on DIN 18723) | 3″ (1.0 mgon) |
| Angle Display (least count) | |
| Type | Centered dual-axis |
| Accuracy | 0.5″ (0.15 mgon) |
| Range | ± 5.4′ (±100 mgon) |
| Distance measurement | |
| Accuracy (ISO) Prism mode | Standard: 1 mm + 2 ppm (0.003 ft + 2 ppm) |
| Accuracy (RMSE) | Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) |
| DR mode | Standard: 2 mm + 2 ppm (0.0065 ft + 2 ppm) Tracking: 4 mm + 2 ppm (0.013 ft + 2 ppm) Extended Range: 10 mm + 2 ppm (0.033 ft + 2 ppm) |
| Measuring time Prism Mode | Standard: 1.2 sec Taracking: 0.4 sec |
| DR mode | Standard: 1–5 sec Tracking: 0.4 sec |
| Measurement Range | |
| Prism mode (under standard clear conditions) | 1 prism: 2500 m (8202 ft) 1 prism Long Range mode: 5500 m (18,044 ft) (max. range) Shortest range: 0.2 m (0.65 ft) |
| EDM SPECIFICATIONS | |
| Light source | Pulsed laserdiode 905 nm, Laser class 1 |
| Beam divergence | Horizontal: 4 cm/100 m (0.13 ft/328 ft) Vertical: 8 cm/100 m (0.26 ft/328 ft) |
| SYSTEM SPECIFICATIONS | |
| Leveling | Circular level in tribrach: 8’/2 mm (8’/0.007 ft) Electronic 2-axis level in the LC-display with a resolution of: 0.3” (0.1 mgon) |
| Servo system | MagDrive servo technology, integrated servo/angle sensor electromagnetic direct drive Rotation speed: 115 degrees/sec (128 gon/sec) Rotation time Face 1 to Face 2: 2.6 sec Positioning time 180 degrees (200 gon): 2.6 sec Clamps and slow motions: Servo-driven, endless fine adjustment |
| Centering | Centering system: Trimble 3-pin Optical plummet: Built-in optical plummet Magnification/shortest focusing distance: 2.3×/0.5 m–infinity (1.6 ft–infinity) |
| Telescope | Magnification: 30× Aperture: 40 mm (1.57 in) Field of view at 100 m (328 ft): 2.6 m at 100 m (8.5 ft at 328 ft) Shortest focusing distance: 1.5 m (4.92 ft)–infinity Illuminated crosshair: Variable (10 steps) |
| Power supply | Internal battery: Rechargeable Li-Ion battery 11.1 V, 5.0 Ah |
| Operating time: | One internal battery: Approx. 6.5 hours Three internal batteries in multi-battery adapter: Approx. 20 hours Robotic holder with one internal battery: 13.5 hours |
| Weight and Dimensions | Instrument (Autolock): 5.4 kg (11.35 lb) Instrument (Robotic): 5.5 kg (11.57 lb) Trimble CU controller: 0.4 kg (0.88 lb) Tribrach: 0.7 kg (1.54 lb) Internal battery: 0.35 kg (0.77 lb) Trunnion axis height: 196 mm (7.71 in) |
| Other | |
| Communication | USB, Serial, Bluetooth |
| Operating temperature | –20 ºC to +50 ºC (–4 ºF to +122 ºF) |
| Tracklight built in | Available in all models |
| Dust and water proofing | IP65 |
| Humidity | 100% condensing |
| Laser pointer coaxial (standard) | Laser Class 2 |
| Security | Dual-layer password protection, Locate2Protect |
| ROBOTIC SURVEYING | |
| Autolock and Robotic Range | Passive prisms: 500 m–700 m (1,640–2,297 ft) Trimble MultiTrack™ Target: 800 m (2,625 ft) Trimble Active Track 360 Target: 500 m (1,640 ft) |
| Autolock pointing precision at 200 m (656 ft) (Standard deviation) | Passive prisms: <2 mm (0.007 ft) Trimble MultiTrack Target: <2 mm (0.007 ft) Trimble Active Track 360 Target: <2 mm (0.007 ft) |
| Shortest search distance | 0.2 m (0.65 ft) |
| Type of radio internal/external. | 2.4 GHz frequency-hopping, spread-sprectrum radios |
| Search time (typical) | 2- 10 Seconds |
| GPS SEARCH/GEOLOCK | |
| GPS Search/GeoLock | 360 degrees (400 gon) or defined horizontal and vertical search window |
| Solution acquisition time | 15–30 sec |
| Target re-acquisition time | <3 sec |
| Range | Autolock & Robotic range limits |
