Description
FARO Focus M70 for sale, short-range professional grade laser scanner, a powerful 3D laser scanner specifically designed for both indoor and outdoor applications that require scanning up to 70 meters.
Includes:
- Faro FocusM 70 Laser Scanner with HDR photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, IP rating 54, Calibration Certificate, Quick Start Guide, Rugged Transport Case
- Battery Power Block, Battery Power Dock, 90W Power Supply
- AC power cable
- External power supply unit with cable
- Optic Cleaning Fluid, Optic Cleaning Tissues
- 32GB SD Card, SD Card Reader, SD Card Cover
- Allen Wrench
- Faro Scene Licence (USB stick with SCENE software and manual)

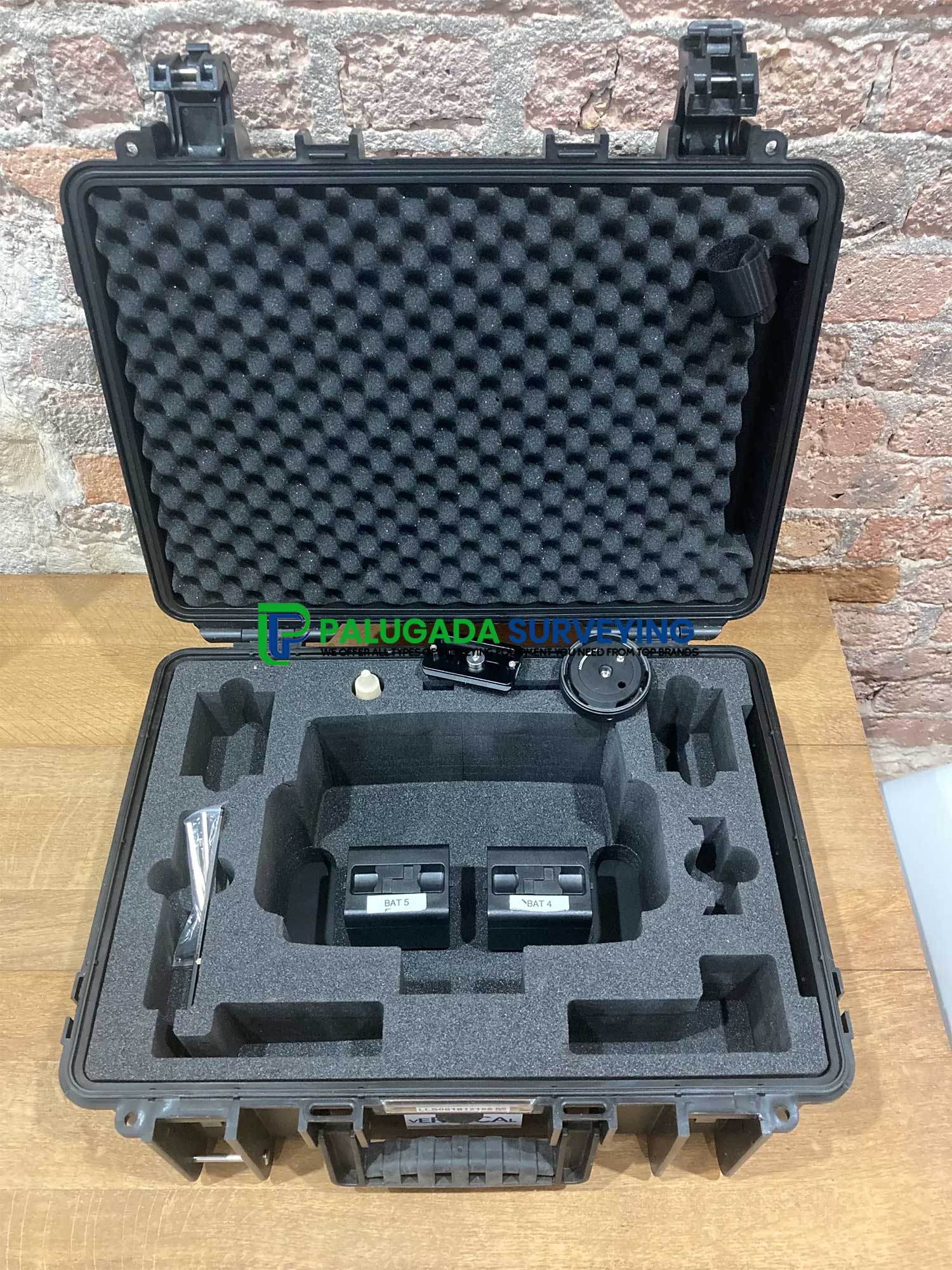

- Scanner transport and carry case
- Tripod
- 2-Year Faro warranty
FARO Focus M70 Combining professional grade scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing.
Faro Focus M70 3D Laser Scanner
The M Series Focus laser scanners feature the highest accuracy and range by using a combination of the most advanced sensor technologies.
- Intuitive and easy to operate touch-screen interface
- Onsite Compensation
- Onsite Registration
- IP Rating 54
- Extended Temperature Range from -20° C to 55° C
- Distance accuracy 0.6-70mm
- Color resolution up to 165-megapixel color
- 300° field of view
- 97Hz (vertical) scan speed
- 9.26 lbs.
LASER SCANNER FOR SHORT-RANGE APPLICATIONS
The FARO Focus M 70 Laser Scanner is a powerful high-speed 3D laser scanner specialized for short-range and small area applications. The ultra-portable device enables fast, straight-forward and accurate measurements of indoor crime scenes, small-scale facades, complex structures, production and supply facilities and manageable accident scenes. Combining the highest-precision scanning technology with authentic mobility and ease-of-use, the new device offers reliability, flexibility, and real-time views of recorded data. The 3D scan data can easily be imported into all commonly used software solutions for architecture and construction, forensics and accident reconstruction or industrial manufacturing. The FARO Focus M 70 Laser Scanner is equipped with recognizable features from FARO’s most popular, compact lightweight and intuitive laser scanning product line.
Faro Focus M70 3D Laser Scanner BENEFITS
- Work with familiar high-class FARO quality Improved productivity by driving projects simultaneously with same investment in comparison to a FARO mid-range scanner
- Conveniently manage and/or register scan data in various software packages
- Best price/performance ratio for short- range construction and public safety forensics applications
- Easily navigate the scanner controls using the large and luminous touch-screen
FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS
| FARO FocusS Plus 350 | FARO FocusS Plus 150 | FARO FocusS 350 | FARO FocusS 150 | FARO FocusS 70 | FARO FocuS M70 | |
| Unambiguity Interval | 614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec 153m at 2 mil pts/sec | 614m for up to 0.5 mil pts/sec 307m at 1 mil pts/sec | 614m for up to 0.5 mil pts/sec | |||
| Range | ||||||
| 90% Reflectivity (white) | 0.6-350m | 0.6-150m | 0.6-350m | 0.6-150m | 0.6-70m | 0.6-70m |
| 10% Reflectivity (dark-gray) | 0.6-150m | 0.6-150m | 0.6-150m | 0.6-150m | 0.6-70m | 0.6-70m |
| 2% Reflectivity (black) | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-50m | 0.6-750m |
| Range Noise | ||||||
| @10m 90% (white) | 0.1 | 0.3 | 0.7 | |||
| @10m 10% (dark-gray) | 0.3 | 0.4 | 0.8 | |||
| @10m 2% (black) | 0.9 | 1.3 | 1.5 | |||
| @25m 90% (white) | 0.2 | 0.3 | 0.7 | |||
| @25m 10% (dark-gray | 0.5 | 0.5 | 0.8 | |||
| @25m 2% (black) | 1.6 | 2.0 | 2.1 | |||
| Max. Measurement Speed (mil. pts/sec) | Up to 2 | Up to 1 | Up to 0.5 | |||
| Ranging Error³ (mm) | ±1 | ±3 | ||||
| Angular Accuracy? | 19 arcsec for vertical/horizontal angles | not specified | ||||
| 3D Point Accuracy | 2 @10m 3.5 @25m | 2 @10m 3.5 @25m | not specified | |||
| ADDITIONAL PERFORMANCE SPECIFICATIONS | |
| Color Resolution | Up to 165-megapixel color |
| HDR Camera | Exposure bracketing 2x, 3x, 5x |
| Parralax | Minimized due to co-axial design |
| Field of View | 300°vertical? / 360° horizontal |
| Step Size | 0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal |
| Max. Scan Speed | 97Hz (vertical) |
| Laser Class | Laser Class 1 |
| Wavelength | 1550nm |
| Beam Divergence | 0.3mrad (1/e) |
| Beam Diameter at Exit | 2.12mm (1/e) |
| Data Storage | SDHC, SDXC, 32GB; max. 512GB card |
| Scanner Control | Via touch screen display and WLAN connection, Access by mobile devices with HTML5 |
| Interface Connection | |
| WLAN | 802.11n (150Mbit/s), as access point or client in existing networks |
| Dual Axis Compensator | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2 |
| Height Sensor | Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan |
| Compass | The electronic compass gives the scan an orientation |
| GNSS | Integrated GPS & GLONASS |
| On-Site Compensation | Creates current quality report and improves compensation automatically |
| Accessory Bay* | The accessory bay connects versatile accessories to the scanner |
| Inverse Mounting | Yes |
| Real-time, On-site Registration in SCENE | Connects to SCENE, real-time scan processing and registration, overview map |
| Electronic Automation Interface | Available as option, only at point of sale |
| Digital Hash Function | Scans are cryptographically hashed and signed by the scanner |
| Rescanning of Distant Targets | Defined areas recaptured in higher resolution at a greater distance |
| Retake Photos | Select individual photographs with unwanted objects and retake them |
| Power Supply | 19V (external supply), 14.4V (internal battery) |
| Power Consumption | 15W idle, 25W scanning, 80W charging |
| Battery Service Life | 4.5 hours |
| Temperature | Operating: 5° – 40° C | Extended Operating?: -20° – 55° C | Storage: -10°- 60°C |
| Ingress Protection (IP) Rating Class | IP54 |
| Humidity Resistance | Non-condensing |
| Weight | 4.2 kg (including battery) |
| Size/Dimensions | 230 x 183 x 103mm |
| Maintenance / Calibration | Recommended annual |
