Creaform GoSCAN Spark 3D Scanner

Description

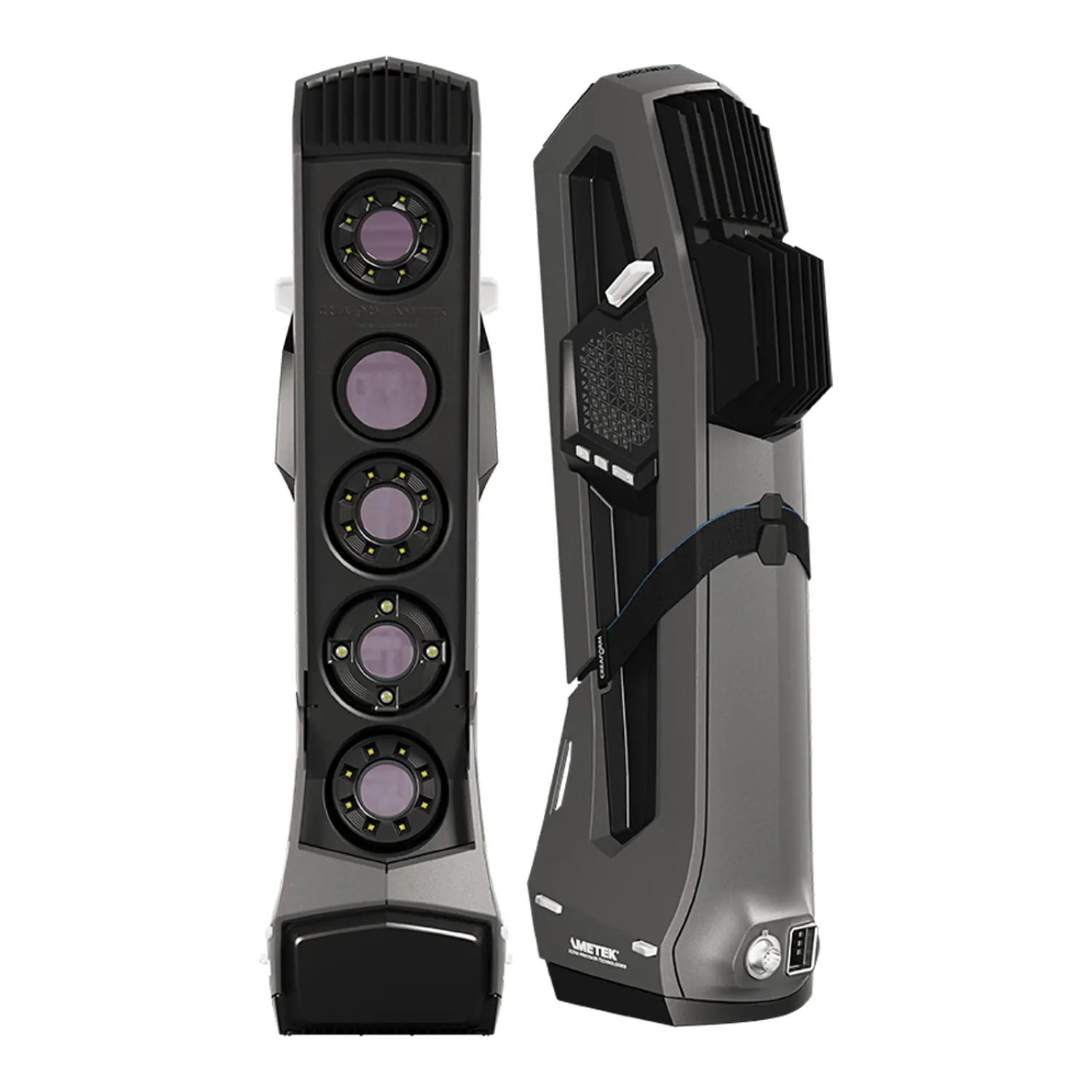

Creaform GoSCAN Spark 3D Scanner

The Go!SCAN SPARK is a portable, professional and handheld 3D scanner from the Canada-based manufacturer, Creaform. This scanner is appropriate for many industries and applications, from CAD design, prototyping, tooling and much more.

A fast-device for professional applications
It has a resolution of 0.2 mm, an accuracy of 0.05 mm and can capture up to 1,500,000 points per second. Like its predecessors, this scanner uses structured light technology. Creaform claims that this device is user-friendly, plug & play, and portable to facilitate accurate scanning. One important feature is that it comes with proprietary software that includes scan-to-CAD and dimensional inspection modules to improve product development.

Leveraging Creaform’s fastest technology, the Go!SCAN SPARK can scan an object in a question of minutes and then integrate it into your preferred software. As mentioned you can use the manufacturer’s proprietary software called VXelements, but also compatible with a wide range of other software. Including 3D Systems, InnovMetric Software, Metrologic Group, New River Kinematics, Verisurf, Dassault Systèmes, Siemens and Autodesk For help, Creaform’s centres are located all around the world to provide assistance to any needs or queries customers may have.

Creaform Go!SCAN SPARK main features
– User-friendly: according to Creaform, the Go!SCAN SPARK doesn’t require any setup and is able to 3D scan objects without any part preparation.
– Robust hybrid tracking: Point-and-shoot, color data acquisition using geometry and/or texture and/or positioning targets.
– VXelements: this plug-and-play 3D scanner comes with dedicated, proprietary software that includes scan-to-CAD and dimensional inspection modules. It’s also possible to use third-party software suites from Autodesk, 3D Systems, Dassault, etc.
– Live mesh: the 3D scanner allows for optimal visualization while scanning to make sure users can see the scan progress capture the surface needed.

Other additional features:
– VXremote (optional): users looking for an easy setup may opt for Creaform’s tablet interface for an additional cost.
– MaxSHOT 3D (optional): this optical coordinate add-on provides enhanced accuracy and speed for larger parts.

Level of Details & Scan Quality
The high resolution and level of details of the Go!SCAN 3D provides astounding scan quality. Featuring full support of color, it creates spectacular results!

– Reliable results
– Resolution of 0.100 mm
– High resolution for intricate details

Portability
Everything about the Go!SCAN 3D has been considered to make your work more efficient. Its portability is second-to-none: take it anywhere you need!

– Lightweight
– 1.25 kg (2.7 lb)
– Dynamic referencing
– Both the object and scanner can be moved freely during scanning
– Fits into a suitcase

Faster 3D Scanning Process
Your work needs to be completed quickly? The Go!SCAN 3D is our fastest technology. Most objects can be scanned in mere minutes and quickly integrated into your preferred software, whether for reverse engineering, computer aided design or 3D printing sorfware.

– Instant mesh
– Ready-to-use files
– High measurement rate
– Up to 1,500,000 measurements/s
– 99 white light scanning lines
– Quick set-up
– Up-and-running in less than 2 minutes

Specifications:
Accuracy : Up to 0.050 mm (0.0020 in)
Volumetric accuracy (based on part size) : 0.050 mm + 0.150 mm/m (0.0020 in + 0.0018 in/ft)
Volumetric accuracy with MaxSHOT Next | Elite : 0.050 mm + 0.015 mm/m (0.0020 in + 0.00018 in/ft)
Measurement resolution : 0.100 mm (0.0039 in)
Mesh resolution : 0.200 mm (0.0078 in)
Measurement rate : 1,500,000 measurements/s
Light source : White light (99 stripes)
Positioning methods : Geometry and/or color and/or targets
Scanning area : 390 x 390 mm (15.4 x 15.4 in)
Stand-off distance : 400 mm (15.7 in)
Depth of field : 450 mm (17.7 in)
Part size range (recommended) : 0.1–4 m (0.3–13 ft)
Texture resolution : 50 to 200 DPI
Texture colors : 24 bits
Software : VXelements
Output formats : .dae, .fbx, .ma, .obj, .ply, .stl, .txt, .wrl, .x3d, .x3dz, .zpr, .3mf
Compatible software : 3D Systems (Geomagic® Solutions), InnovMetric Software (PolyWorks), Metrologic Group (Metrolog X4), New River Kinematics (Spatial Analyzer), Verisurf, Dassault Systèmes (CATIA V5, SOLIDWORKS), PTC (Creo), Siemens (NX, Solid Edge), Autodesk (Inventor, PowerINSPECT)
Weight : 1.25 kg (2.7 lb)
Dimensions (LxWxH) : 89 x 114 x 346 mm (3.5 x 4.5 x 13.6 in)
Connection standard : 1 X USB 3.0
Operating temperature range : 5-40 °C (41-104 °F)
Operating humidity range (non-condensing) : 10-90%
Certifications : EC Compliance (Electromagnetic Compatibility Directive, Low Voltage Directive), compatible with rechargeable batteries (when applicable), IP50, WEEE

Package includes:
– Go!SCAN SPARK Scanner unit
– VXelements software
– 4m USB cable
– Power supply
– Calibration plate
– 1,000 reflective targets
– Maintenance – Go! SCAN SPARK
– VXelements software update
– Transport case
– 3-year warranty on parts and labor
