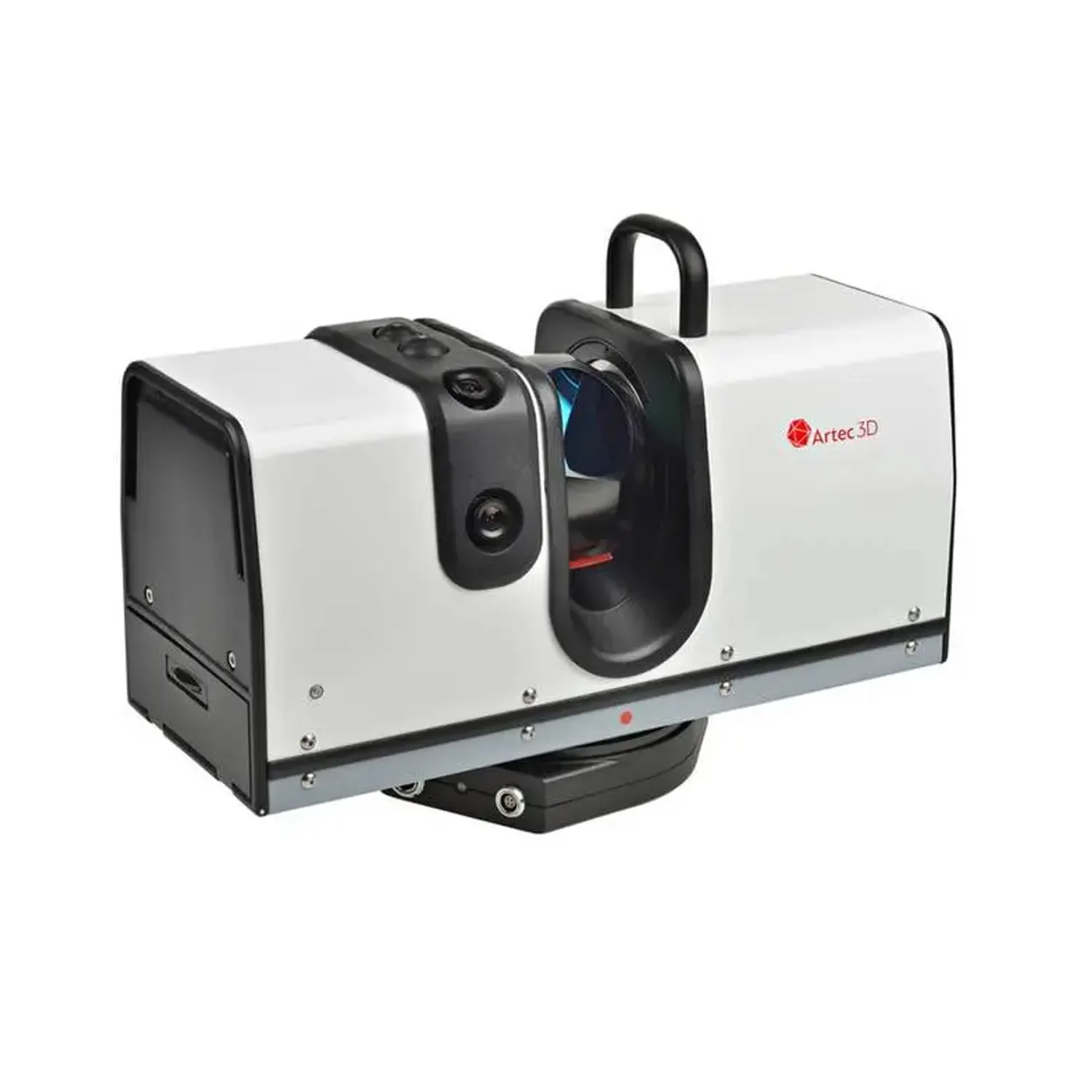

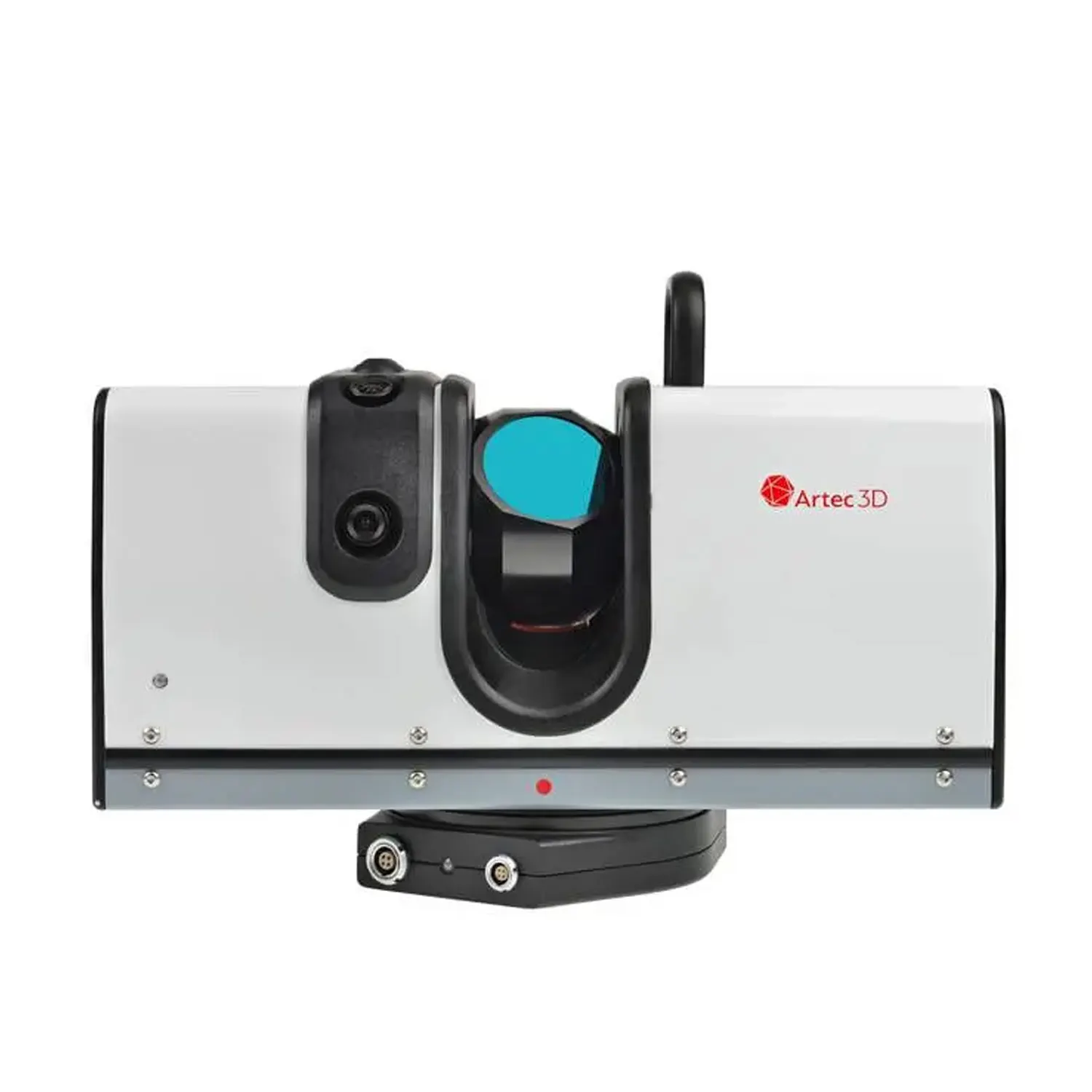

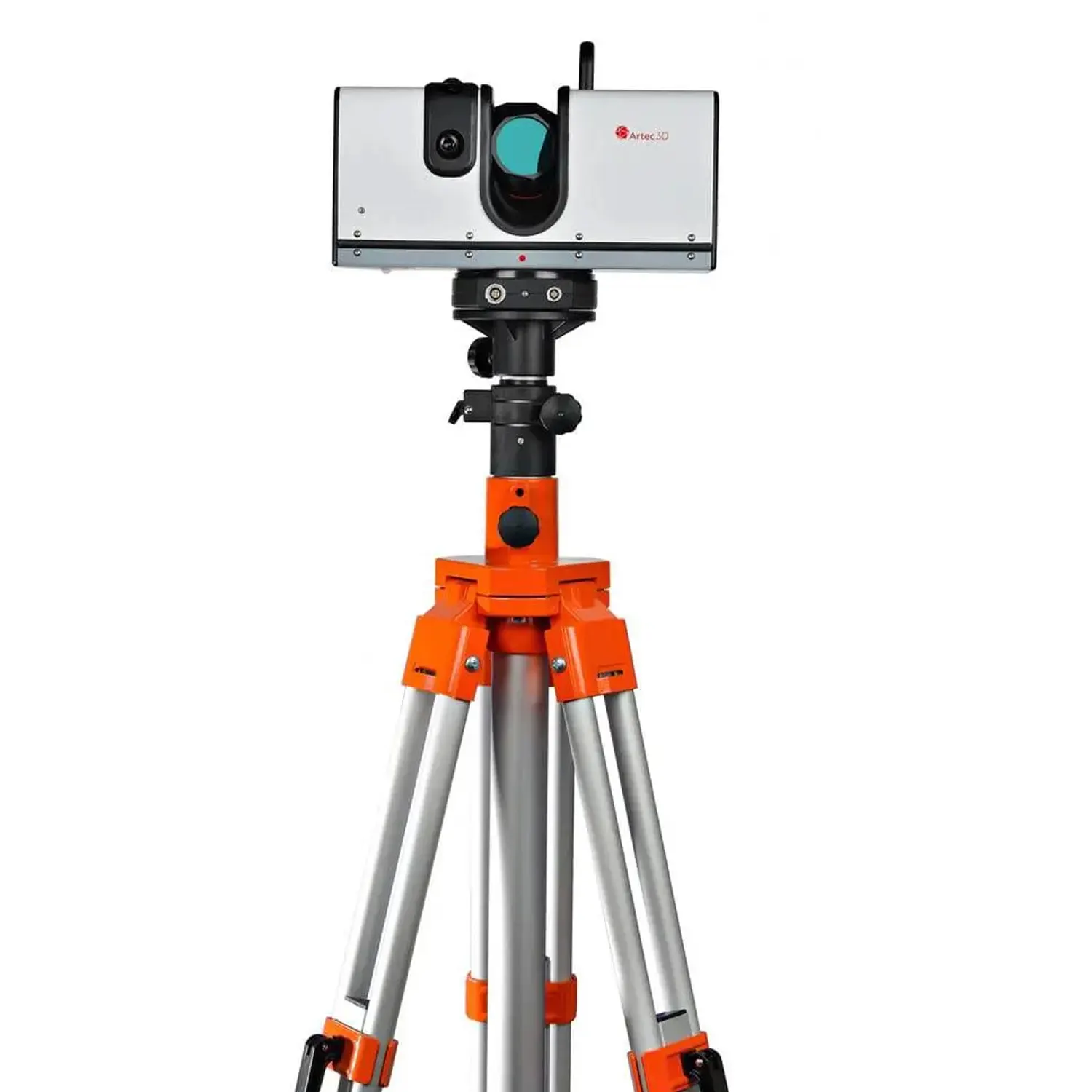

Artec Ray 3D Scanner

Artec Ray 3D Scanner

This compact and portable 3D scanner is suitable indoors and outdoors, with or without a power source. Indeed, its internal battery lasts up to four hours. the Artec Ray is a professional laser 3D scanner made by Artec, a manufacturer from Luxembourg.

To obtain a 3D point cloud of an object, the Artec Ray uses LiDAR (Light Detection and Ranging) 3D scanning technology.

Scan up to 110 m away with this professional LIDAR solution.

KEY FEATURES:
> Range – Up to 110 m
> Ranging error – <0.7 mm @ 15 m
> Angular accuracy – 25 arcseconds
> Range noise, 90% reflectivity – 0.12 mm @ 15 m
> Range noise, 10% reflectivity – 0.3 mm @ 15 m
> Export formats – OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX,E57, XYZRGB, BTX, PTX, CSV, DXF, XML

SPECIFICATIONS TABLE:
> Recommended Work Range: 0.7 mm @ 15 m High Quality Mode & <0.9 mm @ 15 m High Sensitivity Mode
> Ranging error: 0.7 mm @ 15 m High Quality Mode & <0.9 mm @ 15 m
> Range noise, 90% reflectivity: 0.12 mm @ 15 m High Quality Mode & 0.25 mm @ 15 m High Sensitivity Mode
> Range noise, 10% reflectivity: 0.3 mm @ 15 m High Quality Mode & 0.7 mm @ 15 m High > Sensitivity Mode
> Angular accuracy: 25 arcsecs
> Speed, points/second: 208,000
> Scanning modes: Autonomous or via USB
> Color: Two fully integrated 5 megapixel cameras

SPECIAL FEATURES:
> High accuracy long-range laser 3D scanner, ideal for precise capture of large objects
> Submillimeter accuracy
> Scan large vehicles, pipes or buildings.
> Ideal for reverse engineering, inspection and construction.
> Scan large objects both indoors and outdoors!
> Ultra-high precision, fast laser 3D scanner with submillimeter precision.
> Cleanest 3D data capture for minimum post-processing time

APPLICATIONS:
> Industrial design and manufacturing
> Healthcare
> VR
> E-commerce
> Science and education
> Forensics
> Art and design

INCLUDES:
(1X) ARTEC Ray Scanner
(2X) Batteries Li-Ion 14V of 49Wh (Removable)
(1X) Power supply with connection cable to RAY
(1X) Charger for 2 batteries at the same time
(1X) USB cable to connect the scanner to a PC (3 Meter)
(1X) Tread Adapter
(2X) Micro 32 GB SD cards with an SD card backup system
(1X) Carrying Case
(1X) Transport bag
